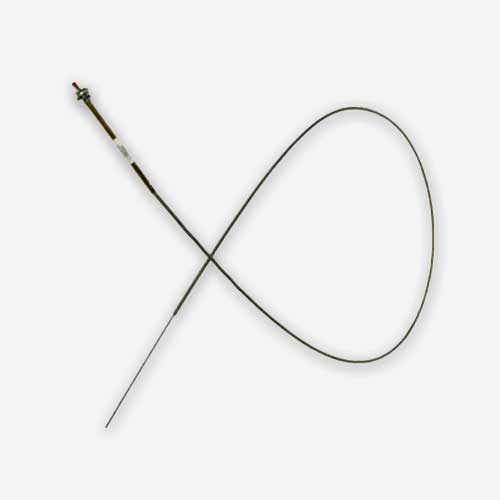

MCU224-072 Universal Light-Weight Control, Creep Resistant, 6 ft, McFarlane Replacement | MCU224072

Please use the push-pull controls pages the McFarlane Aviation catalog below to confirm the MCU224-072 universal control’s compatibility with your aircraft.

• Push-pull controls, accessories, and eligibility chart section of McFarlane Aviation, Inc. catalog (PDF)

Product Specifications:

• Travel (stroke): 3.75″ maximum (Installer must ensure maximum travel is not exceeded during installation and rigging of the control.)
• Conduit: 0.188 inch OD Teflon lined wound conduit
• Max Work Loads: 10 lbs (Pull), 5 lbs (Push) (Maximum push load with 3-1/2″ of wire extending from the conduit.)
• Operating Temp: -65 to 450 deg F
• Inner Wire: 0.061 inch solid wire
• Screw thread for knob attachment: 10-32 x .3
• Screw thread for instrument panel: 3/8-24 x .5
• Manufactured by McFarlane Aviation, Inc.

• For use in non-certified aircraft applications such as cabin heat, cabin air and defrost
• Keyed shaft prevents rotation and maintains knob alignment
• All metal construction
• High temperature Teflon lined conduit for smooth, consistent control
  • Liner prevents premature wire wear due to vibration
  • Controls with poly liners will not tolerate engine temperatures
• Many knob styles available or provide your own knob with 10-32 thread
  • Knobs are not included with the control and may be ordered separately
• Available in 4, 6, 8, 10, 12 foot and custom lengths
  • Measured from panel fitting to end of conduit, wires extend at least 3 inches beyond conduit
  • Easily trimmed to length
• Available with optional creep resistant feature to prevent control creep due to engine vibration
• Manufactured by McFarlane Aviation, Inc.
