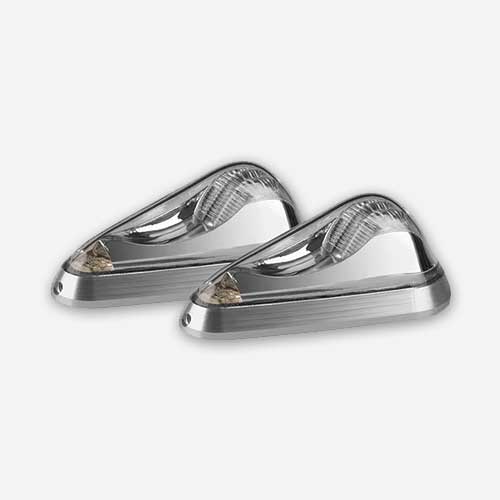

01-1280-C-24-R Pulsar 650 LED Aircraft Navigation/Strobe/Anti-Collision Light (Right, 24 Volt) | AeroLEDs | McFarlane Aviation 011280C24R

The TSO’d Pulsar NSP (Navigation/Anti-collision Strobe/Position) wingtip lights are designed to be installed on the wingtips of an aircraft where the navigation (red and green) and position (white) lights can be seen to determine the direction of the aircraft.

Please use the following documents to confirm the 01-1280-C-24-R Pulsar NSP 24V LED Navigation/Position/Strobe Light’s compatibility with your aircraft.

• 01-1280-C-24-R Pulsar 650 LED Aircraft Navigation/Strobe/Anti-Collision Light data sheet (PDF)
• Lighting eligibility charts and accessory parts section of McFarlane Aviation Catalog, Inc. catalog (PDF)

Product details:

• 17 Watts
• Voltage: DC 9-36V, 24V
• Lumens exceed TSO candela requirements
• Weight: 6.6 oz
• Dimensions: 4.0 x 1.85 x 1.5 inch
• Replaces: 01-1180-C, 01-1280-C-24-R
• Manufactured by AeroLEDs LLC

Pulsar Navigation/Position/Strobe Lights

High Efficiency, Low Drag

Streamlined design takes advantage of the small size of LED light sources to create an aerodynamic profile that produces less drag than traditional Xenon strobe housings.

Differences between the Pulsar NS and the Pulsar NSP

The Pulsar NS has a forward red or green navigation light, and a strobe that covers 180° from each wing tip. The Pulsar NSP are the same as the Pulsar NS but also have a rear white position light.

AeroLEDs Lighting

Increased Safety

AeroLED lights allow you to comply with the latest FAA recommendations (Operation Lights On) regarding extended use of taxi, landing and anti-collision lights without fear of reduced light performance or life. They all feature optimized light color (6500k sunlight equivalent) for proven superior air-to-air recognition. The landing lights also feature a pulsed recognition light mode.

Reduced Power Consumption

High efficiency LED lights use less than 1/3 the power of halogen bulbs. They significantly reduce the load on the electrical system and they will not dim due to low voltage typical of low RPM final approaches when you need them most!

Longer Life – Zero Maintenance

All AeroLED products are designed to be a “lifetime buy.” They last over 50,000 hours when properly installed and do not degrade with on/off cycles. They are extremely rugged and hardened against all kinds of electrical damage, shock and vibration.

Pulse Recognition Mode

AeroLED lights with pulse mode (or wig-wag mode) greatly improve safety by alternately blinking the left then right light once per second. This dramatically increases your aircraft visibility to prevent both air and ground collisions. At least one 36HX or 46HX series light must be installed to enable pulse mode.
