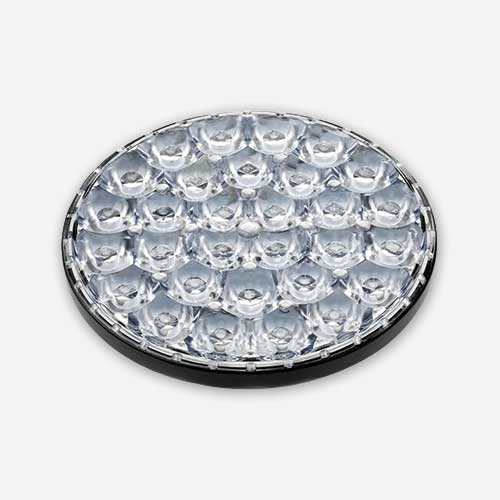

01-2230-4580-H SunSpot 46-4580 LED Aircraft Landing Light with Pulse (WigWag) | AeroLEDs | McFarlane Aviation 0122304580H

AeroLED lights with pulse mode (or wig-wag mode) greatly improve safety by alternately blinking the left then right light once per second. This dramatically increases your aircraft visibility to prevent both air and ground collisions. At least one 36HX or 46HX series light must be installed to enable pulse mode.

Please use the following documents to confirm the 01-2230-4580-H SunSpot 46-4580 LED Landing Light’s compatibility with your aircraft.

• 01-2230-4580-H SunSpot 46-4580 LED Aircraft Landing Light product data sheet (PDF)
• Lighting eligibility charts and accessory parts section of McFarlane Aviation Catalog, Inc. catalog (PDF)

Product details:

• 175 Watts
• Voltage: 28V
• Lumens: 19,250
• Candela: 250,000
• Beam Profile: 20′ x 20′
• Weight: 20 oz
• Dimensions: 5.6 x 5.6 x 1.9 inches
• FAA-PMA, FAA-STC approved drop-in replacement for PAR36/PAR46 lights
• Replaces: GE4580, GE4581, GE Q4566, GE Q4681, 01-2230-4580
• Manufactured by AeroLEDs LLC

Increased Safety

AeroLED lights allow you to comply with the latest FAA recommendations (Operation Lights On) regarding extended use of taxi, landing and anti-collision lights without fear of reduced light performance or life. They all feature optimized light color (6500k sunlight equivalent) for proven superior air-to-air recognition. The landing lights also feature a pulsed recognition light mode.

Reduced Power Consumption

High efficiency LED lights use less than 1/3 the power of halogen bulbs. They significantly reduce the load on the electrical system and they will not dim due to low voltage typical of low RPM final approaches when you need them most!

Longer Life – Zero Maintenance

All AeroLED products are designed to be a “lifetime buy.” They last over 50,000 hours when properly installed and do not degrade with on/off cycles. They are extremely rugged and hardened against all kinds of electrical damage, shock and vibration.

Pulse Recognition Mode

AeroLED lights with pulse mode (or wig-wag mode) greatly improve safety by alternately blinking the left then right light once per second. This dramatically increases your aircraft visibility to prevent both air and ground collisions. At least one 36HX or 46HX series light must be installed to enable pulse mode.
