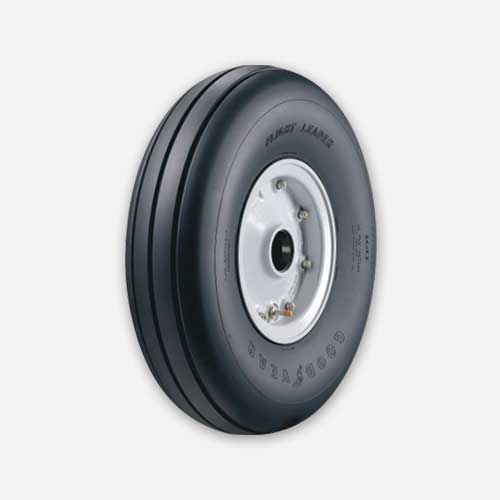

145K41-1 Goodyear Three-Part Aircraft Rib Tire | 14.5×5.5-6, 14 Ply, TL | 145K411

Please consult the following documents for more information about the 145K41-1 Goodyear Three-Part Aircraft Rib Tire:

• Approved Model List (PDF): Goodyear Aircraft Tire Care & Maintenance Guide
• Installation Instructions (PDF): Goodyear General Aviation/Business Aircraft Application Chart

CONSTRUCTION

• Ply Rating: 14
• TT or TL: TL (Tubeless)
• Rated Speed (MPH): 120

SERVICE RATING

• Rated Load (LBS): 3,550
• Rated Inflation (PSI): 155
• Maximum Braking Load (LBS): 5,330
• Maximum Bottoming Load (LBS): 10,600

INFLATED DIMENSIONS

• Outside diameter: Max 14.5 / Min 14
• Section width: Max 5.5 / Min 5.15
• Shoulder: Diameter Max 13 / Width Max 4.85

• Static Loaded Radius (inches): 6.1
• Flat Tire Radius (inches): 5.09
• Aspect ratio: 0.774

WHEEL

• Width Between Flanges: 4.25
• Specified Rim Diameter: 6
• Flange Height: 0.88
• Minimum Ledge Width: 1.50
