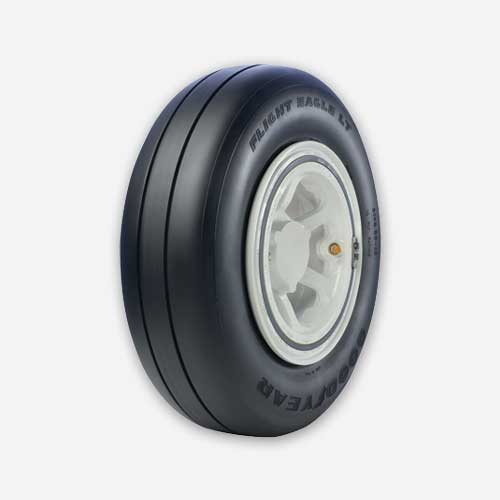

156E06B1 Goodyear Flight Eagle LT DDT Three-Part Aircraft Tire | 15×6.0-6, 10 Ply, TL
$789.00
- Ply Rating: 10
- TT or TL: TL
- Rated Speed (MPH): 160
Please consult the following documents for more information about the 156E06B1 Goodyear Flight Eagle LT DDT Three-Part Aircraft Tire:
CONSTRUCTION
- Ply Rating: 10
- TT or TL: TL
- Rated Speed (MPH): 160
SERVICE RATING
- Rated Load (LBS): 3,200
- Rated Inflation (PSI): 112
- Maximum Braking Load (LBS): 4,640
- Maximum Bottoming Load (LBS): 8,600
INFLATED DIMENSIONS
- Outside diameter: Max 15.2 / Min 14.55
- Section width: Max 6.3 / Min 5.9
- Shoulder: Diameter Max 13.55 / Width Max 5.55
- Static Loaded Radius (inches): 6.1
- Flat Tire Radius (inches): 4.90
- Aspect ratio: 0.732
WHEEL
- Width Between Flanges:5.00
- Specified Rim Diameter: 6
- Flange Height: 0.75
- Minimum Ledge Width: 0.90
| Dimensions | 00 × 00 in |
|---|
