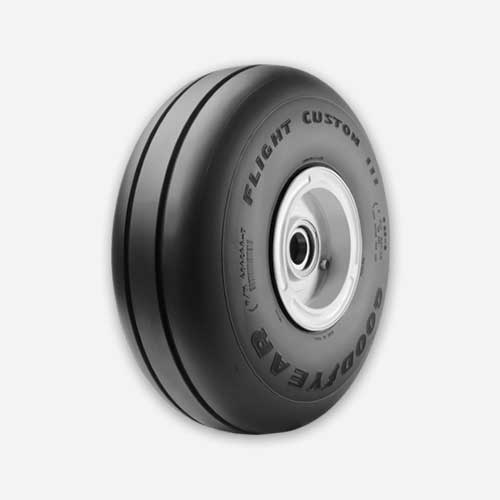

156E66-4 Goodyear Three-Part Flight Custom III Aircraft Tire | 15×6.0-6, 6 Ply, TT | 156E664

Please consult the following documents for more information about the 184F08-1 Goodyear Business Aircraft Rib DDT Type VII Tire:

• Goodyear Flight Custom III Application Guide (PDF)
• Approved Model List (PDF): Goodyear Aircraft Tire Care & Maintenance Guide
• Installation Instructions (PDF): Goodyear General Aviation/Business Aircraft Application Chart

CONSTRUCTION

• Ply Rating: 6
• TT or TL: TT
• Rated Speed (MPH): 160

SERVICE RATING

• Rated Load (LBS): 1,950
• Rated Inflation (PSI): 68
• Maximum Braking Load (LBS): 2,830
• Maximum Bottoming Load (LBS): 5,300

INFLATED DIMENSIONS

• Outside diameter: Max 15.2 / Min 14.55
• Section width: Max 6.3 / Min 5.9
• Shoulder: Diameter Max 13.55 / Width Max 5.55

• Static Loaded Radius (inches): 6.1
• Flat Tire Radius (inches): 4.80
• Aspect ratio: 0.726

WHEEL

• Width Between Flanges: 5.00
• Specified Rim Diameter: 6
• Flange Height: 0.75
• Minimum Ledge Width: 0.85
