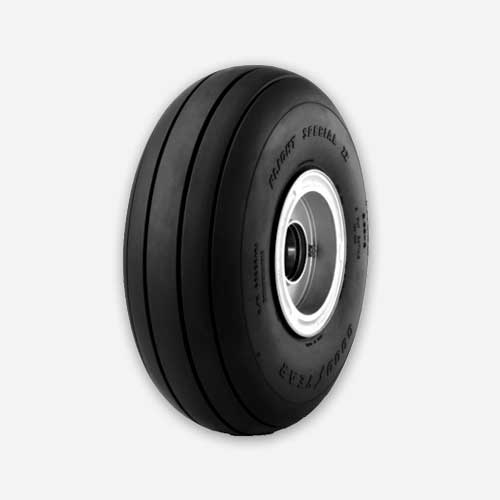

156E61-3 Goodyear Flight Special II Three-Part Aircraft Tire | 15×6.0-6, 6 Ply, TT | 156E61-3
$208.00
- Tough General Aviation tire
- Wide rib tread design and large footprint (Enhanced traction)
- Tough-wearing tread rubber with triple-tempered nylon casing cord (promotes uniform wear and extended service life)
Please consult the following documents for more information about the 164F28-1 Goodyear Flight Eagle Type VII Business Jet Aircraft Tire:
CONSTRUCTION
- Ply Rating: 6
- TT or TL: TT
- Rated Speed (MPH): 160
SERVICE RATING
- Rated Load (LBS): 1,950
- Rated Inflation (PSI): 68
- Maximum Braking Load (LBS): 2,830
- Maximum Bottoming Load (LBS): 5,300
INFLATED DIMENSIONS
- Outside diameter: Max 15.2 / Min 14.55
- Section width: Max 6.3 / Min 5.9
- Shoulder: Diameter Max 13.55 / Width Max 5.55
- Static Loaded Radius (inches): 6.1
- Flat Tire Radius (inches): 4.80
- Aspect ratio: 0.726
WHEEL
- Width Between Flanges:5.00
- Specified Rim Diameter: 6
- Flange Height: 0.75
- Minimum Ledge Width: 0.85
| Dimensions | 00 × 00 in |
|---|
