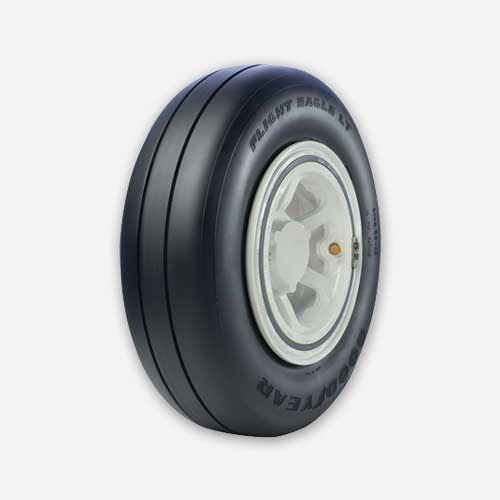

156E23-1 Goodyear Flight Eagle LT DDT Three-Part Aircraft Tire | 15×6.0-6, LR 3483, TL | 156E231

Please consult the following documents for more information about the 156E23-1 Goodyear Flight Eagle LT DDT Three-Part Aircraft Tire:

• Goodyear Flight Eagle (Business Jet Aircraft Tires) Application Guide
• Approved Model List (PDF): Goodyear Aircraft Tire Care & Maintenance Guide
• Installation Instructions (PDF): Goodyear General Aviation/Business Aircraft Application Chart

CONSTRUCTION

• Ply Rating: LR 3483
• TT or TL: TL
• Rated Speed (MPH): 210

SERVICE RATING

• Rated Load (LBS): 3,483
• Rated Inflation (PSI): 137
• Maximum Braking Load (LBS): 5,115
• Maximum Bottoming Load (LBS): 10,560

INFLATED DIMENSIONS

• Outside diameter: Max 15.2 / Min 14.55
• Section width: Max 6.3 / Min 5.9
• Shoulder: Diameter Max 13.55 / Width Max 5.55

• Static Loaded Radius (inches): 6.3
• Flat Tire Radius (inches): 4.90
• Aspect ratio: 0.732

WHEEL

• Width Between Flanges:5.00
• Specified Rim Diameter: 6
• Flange Height: 0.75
• Minimum Ledge Width: 1.50
