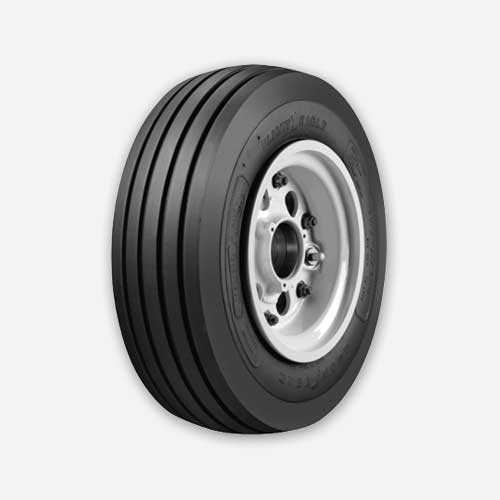

184F23-2 Goodyear Flight Eagle DT Business Jet Type VII Aircraft Tire | 18×4.4, 12 Ply, TL | 184F232

Please consult the following documents for more information about the 184F23-2 Goodyear Flight Eagle DT Business Jet Type VII Aircraft Tire:

• Goodyear Flight Eagle (Business Jet Aircraft Tires) Application Guide
• Approved Model List (PDF): Goodyear Aircraft Tire Care & Maintenance Guide
• Installation Instructions (PDF): Goodyear General Aviation/Business Aircraft Application Chart

CONSTRUCTION

• Ply Rating: 12
• TT or TL: TL
• Rated Speed (MPH): 210

SERVICE RATING

• Rated Load (LBS): 4,350
• Rated Inflation (PSI): 225
• Maximum Braking Load (LBS): 6,520
• Maximum Bottoming Load (LBS): 13,000

INFLATED DIMENSIONS

• Outside diameter: Max 17.9 / Min 17.4
• Section width: Max 4.45 / Min 4.15
• Shoulder: Diameter Max 16.5 / Width Max 3.9

• Static Loaded Radius (inches): 7.9
• Flat Tire Radius (inches): 7.00
• Aspect ratio: 0.889

WHEEL

• Width Between Flanges: 3.50
• Specified Rim Diameter: 10
• Flange Height: 0.81
• Minimum Ledge Width: 1.25
