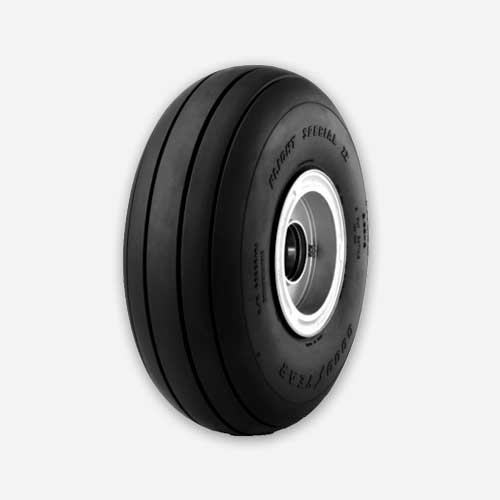

185F81-1 Goodyear Flight Special II Type VII Aircraft Tire | 18×5.5, 8 Ply, TT | 185F811

Please consult the following documents for more information about the 185F81-1 Goodyear Flight Special II Type VII Aircraft Tire:

• Goodyear Flight Special II Aircraft Tires Application Guide (PDF)
• Approved Model List (PDF): Goodyear Aircraft Tire Care & Maintenance Guide
• Installation Instructions (PDF): Goodyear General Aviation/Business Aircraft Application Chart

CONSTRUCTION

• Ply Rating: 8
• TT or TL: TT (Tube Type)
• Rated Speed (MPH): 120

SERVICE RATING

• Rated Load (LBS): 3,050
• Rated Inflation (PSI): 105
• Maximum Braking Load (LBS): 4,570
• Maximum Bottoming Load (LBS): 9,200

INFLATED DIMENSIONS

• Outside diameter: Max 17.9 / Min 17.3
• Section width: Max 5.75 / Min 5.35
• Shoulder: Diameter Max 16.2 / Width Max 5

• Static Loaded Radius (inches): 7.5
• Flat Tire Radius (inches): 5.90
• Aspect ratio: 0.869

WHEEL

• Width Between Flanges: 4.25
• Specified Rim Diameter: 8
• Flange Height: 0.88
• Minimum Ledge Width: 1.25
