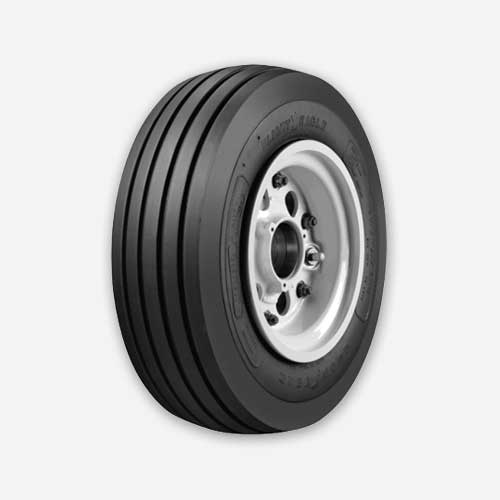

186K88-5 Goodyear Flight Eagle DDT Business Jet Three-Part Aircraft Tire | 18×5.75-8, 8 Ply, TL | 186K885
$1,925.00
- Ply Rating: 8
- TT or TL: TL
- Rated Speed (MPH): 190
Please consult the following documents for more information about the 186K88-5 Goodyear Flight Eagle DDT Business Jet Three-Part Aircraft Tire:
CONSTRUCTION
- Ply Rating: 8
- TT or TL: TL
- Rated Speed (MPH): 190
SERVICE RATING
- Rated Load (LBS): 3,050
- Rated Inflation (PSI): 105
- Maximum Braking Load (LBS): 4,570
- Maximum Bottoming Load (LBS): 9,200
INFLATED DIMENSIONS
- Outside diameter: Max 18 / Min 17.4
- Section width: Max 5.75 / Min 5.4
- Shoulder: Diameter Max 16.2 / Width Max 5.1
- Static Loaded Radius (inches): 7.6
- Flat Tire Radius (inches): 6.00
- Aspect ratio: 0.870
WHEEL
- Width Between Flanges: 4.25
- Specified Rim Diameter: 8
- Flange Height: 0.88
- Minimum Ledge Width: 1.25
| Dimensions | 00 × 00 in |
|---|
