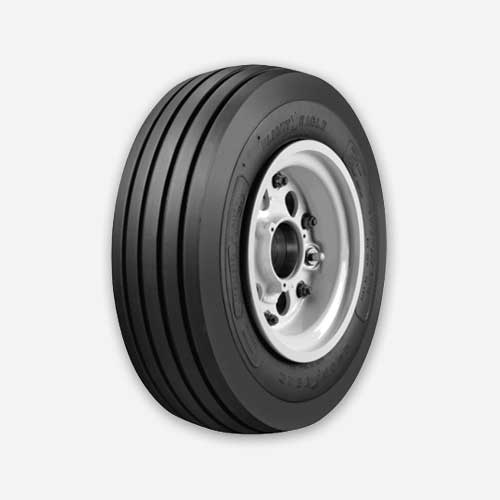

220K08-3 Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire | 22×8.00-10, 10 Ply, TL | 220K083

Please consult the following documents for more information about the 220K08-3 Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire:

• Goodyear Flight Eagle (Business Jet Aircraft Tires) Application Guide
• Approved Model List (PDF): Goodyear Aircraft Tire Care & Maintenance Guide
• Installation Instructions (PDF): Goodyear General Aviation/Business Aircraft Application Chart

CONSTRUCTION

• Ply Rating: 10
• TT or TL: TL
• Rated Speed (MPH): 190

SERVICE RATING

• Rated Load (LBS): 6,500
• Rated Inflation (PSI): 110
• Maximum Braking Load (LBS): 9,750
• Maximum Bottoming Load (LBS): 17,500

INFLATED DIMENSIONS

• Outside diameter: Max 22 / Min 21.35
• Section width: Max 8 / Min 7.55
• Shoulder: Diameter Max 19.85 / Width Max 7.05

• Static Loaded Radius (inches): 9
• Flat Tire Radius (inches): 6.90
• Aspect ratio: 0.750

WHEEL

• Width Between Flanges: 5.00
• Specified Rim Diameter: 10
• Flange Height: 0.63
• Minimum Ledge Width: 1.40
