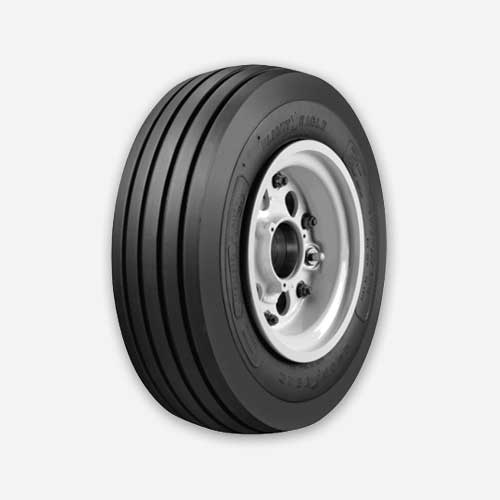

226K23-2 Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire | 22×5.75-12, 12 Ply, TL | 226K232
$2,698.00
- Ply Rating: 12
- TT or TL: TL
- Rated Speed (MPH): 210
Please consult the following documents for more information about the 226K23-2 Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire:
CONSTRUCTION
- Ply Rating: 12
- TT or TL: TL
- Rated Speed (MPH): 210
SERVICE RATING
- Rated Load (LBS): 7,100
- Rated Inflation (PSI): 220
- Maximum Braking Load (LBS): 10,650
- Maximum Bottoming Load (LBS): 21,300
INFLATED DIMENSIONS
- Outside diameter: Max 22 / Min 21.4
- Section width: Max 5.75 / Min 5.4
- Shoulder: Diameter Max 20.2 / Width Max 5.05
- Static Loaded Radius (inches): 9.6
- Flat Tire Radius (inches): 8.30
- Aspect ratio: 0.870
WHEEL
- Width Between Flanges: 4.25
- Specified Rim Diameter: 12
- Flange Height: 0.88
- Minimum Ledge Width: 1.35
| Dimensions | 00 × 00 in |
|---|
