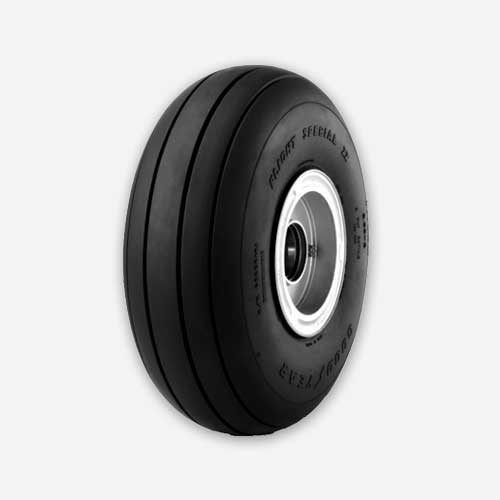

228K61-1 Goodyear Flight Special II Three-Part Aircraft Tire | 22×8.0-8, 6 Ply, TT | 228K611
$409.00
- Tubeless
- Tough General Aviation tire
- Wide rib tread design and large footprint (Enhanced traction)
- Tough-wearing tread rubber with triple-tempered nylon casing cord (promotes uniform wear and extended service life)
Please consult the following documents for more information about the 228K61-1 Goodyear Flight Special II Three-Part Aircraft Tire:
CONSTRUCTION
- Ply Rating: 6
- TT or TL: TT (Tube Type)
- Rated Speed (MPH): 120
SERVICE RATING
- Rated Load (LBS): 2,500
- Rated Inflation (PSI): 40
- Maximum Braking Load (LBS): 3,620
- Maximum Bottoming Load (LBS): 6,700
INFLATED DIMENSIONS
- Outside diameter: Max 22 / Min 21.3
- Section width: Max 8 / Min 7.55
- Shoulder: Diameter Max 19.5 / Width Max 7.05
- Static Loaded Radius (inches): 8.75
- Flat Tire Radius (inches): 6.00
- Aspect ratio: 0.878
WHEEL
- Width Between Flanges: 6.00
- Specified Rim Diameter: 8
- Flange Height: 0.88
- Minimum Ledge Width: 1.10
| Dimensions | 00 × 00 in |
|---|
