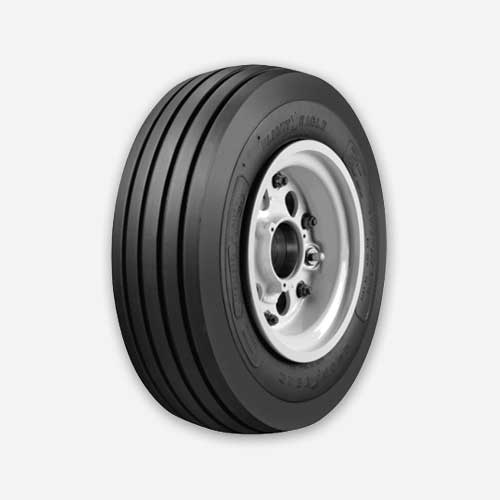

Please consult the following documents for more information about the 229K28-2 Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire:
CONSTRUCTION
- Ply Rating: 12
- TT or TL: TL
- Rated Speed (MPH): 190
SERVICE RATING
- Rated Load (LBS): 6,900
- Rated Inflation (PSI): 132
- Maximum Braking Load (LBS): 10,350
- Maximum Bottoming Load (LBS): 18,620
INFLATED DIMENSIONS
- Outside diameter: Max 22 / Min 21.4
- Section width: Max 8.25 / Min 7.8
- Shoulder: Diameter Max 20.8 / Width Max 7.45
- Static Loaded Radius (inches): 9.14
- Flat Tire Radius (inches): 7.10
- Aspect ratio: 0.726
WHEEL
- Width Between Flanges: 5.25
- Specified Rim Diameter: 10
- Flange Height: 0.85
- Minimum Ledge Width: 1.10
