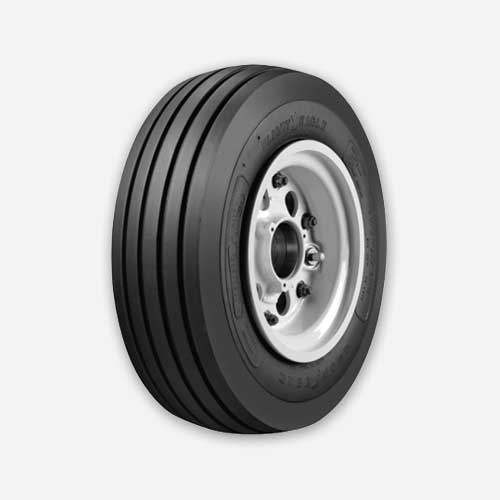

229K48-2 Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire | H22x8.25-10, 14 Ply, TL | 229K482
$2,095.00
- Ply Rating: 14
- TT or TL: TL
- Rated Speed (MPH): 190
Please consult the following documents for more information about the 229K48-2 Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire:
CONSTRUCTION
- Ply Rating: 14
- TT or TL: TL
- Rated Speed (MPH): 190
SERVICE RATING
- Rated Load (LBS): 8,300
- Rated Inflation (PSI): 156
- Maximum Braking Load (LBS): 12,500
- Maximum Bottoming Load (LBS): 22,400
INFLATED DIMENSIONS
- Outside diameter: Max 22 / Min 21.35
- Section width: Max 8.25 / Min 7.8
- Shoulder: Diameter Max 20.79 / Width Max 7.44
- Static Loaded Radius (inches): 9.14
- Flat Tire Radius (inches): 7.10
- Aspect ratio: 0.726
WHEEL
- Width Between Flanges: 5.25
- Specified Rim Diameter: 10
- Flange Height: 0.85
- Minimum Ledge Width: 2.14
| Dimensions | 00 × 00 in |
|---|
