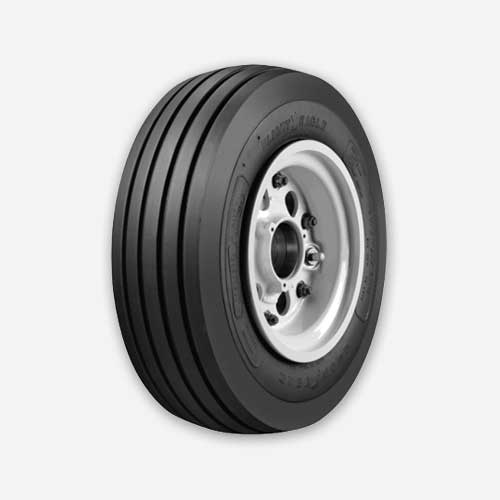

Please consult the following documents for more information about the Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire:
CONSTRUCTION
- Ply Rating: 12
- TT or TL: TL
- Rated Speed (MPH): 210
SERVICE RATING
- Rated Load (LBS): 7,800
- Rated Inflation (PSI): 160
- Maximum Braking Load (LBS): 11,700
- Maximum Bottoming Load (LBS): 23,400
INFLATED DIMENSIONS
- Outside diameter: Max 23.2 / Min 22.6
- Section width: Max 7.2 / Min 6.8
- Shoulder: Diameter Max 21.15 / Width Max 6.3
- Static Loaded Radius (inches): 9.89
- Flat Tire Radius (inches): 7.90
- Aspect ratio: 0.778
WHEEL
- Width Between Flanges: 6.25
- Specified Rim Diameter: 12
- Flange Height: 0.65
- Minimum Ledge Width: 1.25
