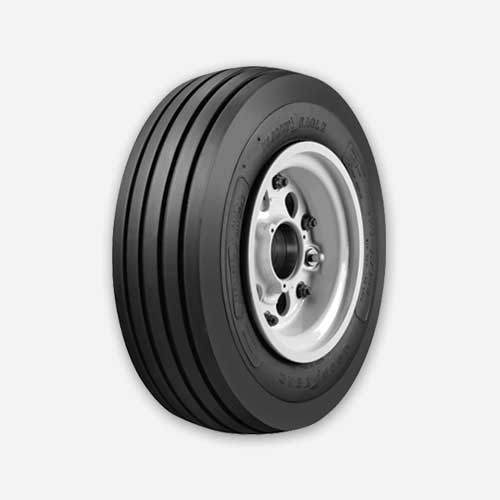

249K83-3 Goodyear Red Streak 700 Three-Part Aircraft Tire | B24x9.5-10.5, 18 Ply, TL | 249K833

Please consult the following documents for more information about the 249K83-3 Goodyear Red Streak 700 Three-Part Aircraft Tire:

• Approved Model List (PDF): Goodyear Aircraft Tire Care & Maintenance Guide
• Installation Instructions (PDF): Goodyear General Aviation/Business Aircraft Application Chart

CONSTRUCTION

• Ply Rating: 18
• TT or TL: TL
• Rated Speed (MPH): 210

SERVICE RATING

• Rated Load (LBS): 12,200
• Rated Inflation (PSI): 160
• Maximum Braking Load (LBS): 18,300
• Maximum Bottoming Load (LBS): 32,900

INFLATED DIMENSIONS

• Outside diameter: Max 24 / Min 23.3
• Section width: Max 9.5 / Min 8.95
• Shoulder: Diameter Max 21.6 / Width Max 8.4

• Static Loaded Radius (inches): 9.85
• Flat Tire Radius (inches): 7.69
• Aspect ratio: 0.712

WHEEL

• Wheel (Rim) Size: B24x9.5-10.5
• Width Between Flanges: 6.00
• Specified Rim Diameter: 10.5
• Flange Height: 0.88
• Minimum Ledge Width: 1.90
