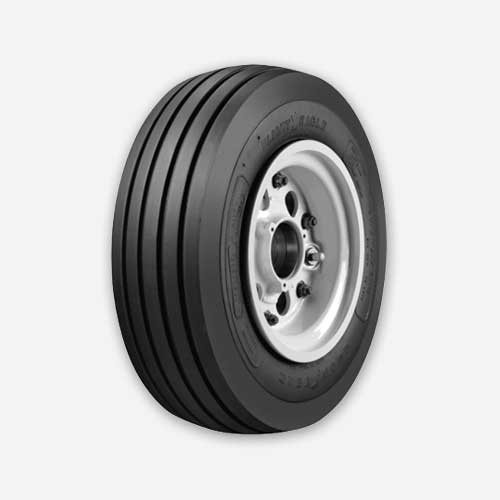

265K68-2 Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire | 26×6.75-14, 16 Ply, TL | 265K682
$3,495.00
- Ply Rating: 16
- TT or TL: TL
- Rated Speed (MPH): 190
Please consult the following documents for more information about the 265K68-2 Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire:
CONSTRUCTION
- Ply Rating: 16
- TT or TL: TL
- Rated Speed (MPH): 190
SERVICE RATING
- Rated Load (LBS): 11,900
- Rated Inflation (PSI): 270
- Maximum Braking Load (LBS): 17,850
- Maximum Bottoming Load (LBS): 35,700
INFLATED DIMENSIONS
- Outside diameter: Max 26 / Min 25.3
- Section width: Max 6.75 / Min 6.34
- Shoulder: Diameter Max 23.85 / Width Max 5.94
- Static Loaded Radius (inches): 11.3
- Flat Tire Radius (inches): 9.60
- Aspect ratio: 0.888
WHEEL
- Width Between Flanges: 5.00
- Specified Rim Diameter: 14
- Flange Height: 1.00
- Minimum Ledge Width: 1.90
| Dimensions | 00 × 00 in |
|---|
