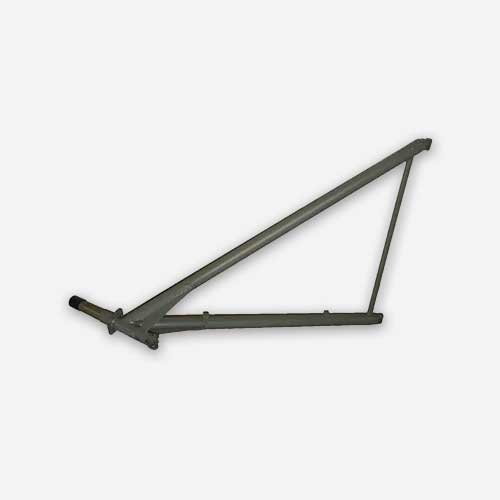

3284-1 Piper Aircraft 3″ Extended Height Heavy Duty Main Landing Gear for 1-1/4″ Axle (LH) F. Atlee Dodge | McFarlane Aviation 32841

Please use the F. Atlee Dodge pages the McFarlane Aviation catalog below to confirm the 3284-1 landing gear’s compatibility with your aircraft.

• F. Atlee Dodge section of McFarlane Aviation, Inc. catalog (PDF)

3″ extended landing gear gives more height and prop clearance, which is especially important for sand or gravel landings.

2000 lb gross weight model product details:

• Fits many Piper PA-12, PA-14, PA-18 model aircraft
• FAA-PMA, FAA-STC Approved
• Manufactured by F. Atlee Dodge Aircraft Services, LLC.

Powder coat finish. Also available with gray epoxy primer for an additional $40.00 charge per leg, and gloss white or “Wolf Hunter” black for an additional $70.00 charge per leg.

Available in standard or 3″ extended sizes:

• Standard height gear 1-1/4″ axle use p/n 3225-1 (LH) and 3225-2 (RH)
• Standard height gear 1-1/2″ axle use p/n 3225-1A (LH) and 3225-2A (RH)
• 3″ Extended height gear 1-1/4″ axle use p/n 3284-1 (LH) and 3284-2 (RH)
• 3″ Extended height gear 1-1/2″ axle use p/n 3284-1A (LH) and 3284-2A (RH)

Note: Can be used on models J-3, PA11, PA12 and PA14 but requires another STC modification involving additional parts and welding.
