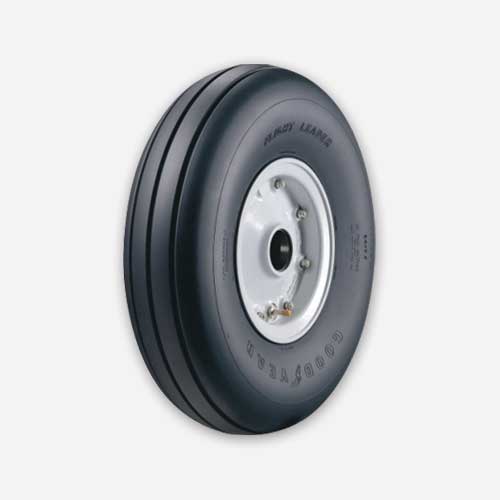

Please consult the following documents for more information about the 385M61-1 Goodyear Aircraft Rib Metric Tire:
CONSTRUCTION
- Ply Rating: 6
- TT or TL: TT
- Rated Speed (MPH): 120
SERVICE RATING
- Rated Load (LBS): 1,600
- Rated Inflation (PSI): 45
- Maximum Braking Load (LBS): 2,320
- Maximum Bottoming Load (LBS): 4,300
INFLATED DIMENSIONS
- Outside diameter: Max 15.2 / Min 14.72
- Section width: Max 5.91 / Min 5.59
- Shoulder: Diameter Max 13.4 / Width Max 5.3
- Static Loaded Radius (inches): 5.9
- Flat Tire Radius (inches): 4.09
- Aspect ratio: 5.3
WHEEL
- Width Between Flanges:3.75
- Specified Rim Diameter: 5
- Flange Height: 0.51
