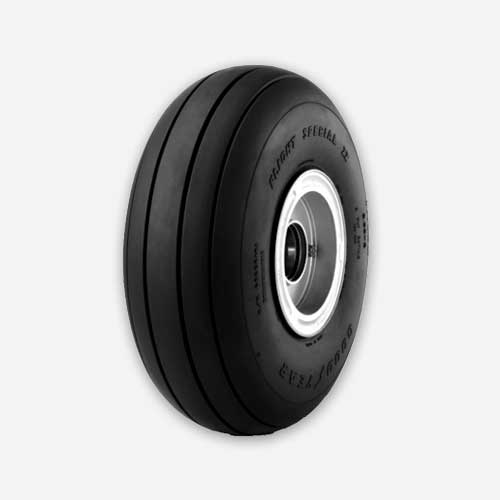

505C41-4 Goodyear Flight Special II Type III Aircraft Tire | 5.00-5, 4 Ply, TT | 505C414
$162.00
- Tube Type
- Tough General Aviation tire
- Wide rib tread design and large footprint (Enhanced traction)
- Tough-wearing tread rubber with triple-tempered nylon casing cord (promotes uniform wear and extended service life)
Please consult the following documents for more information about the 505C41-4 Goodyear Flight Special II Type III Aircraft Tire:
CONSTRUCTION
- Ply Rating: 4
- TT or TL: TT (Tube Type)
- Rated Speed (MPH): 120
SERVICE RATING
- Rated Load (LBS): 800
- Rated Inflation (PSI): 31
- Maximum Braking Load (LBS): 1,160
- Maximum Bottoming Load (LBS): 2,200
INFLATED DIMENSIONS
- Outside diameter: Max 14.2 / Min 13.65
- Section width: Max 4.95 / Min 4.65
- Shoulder: Diameter Max 12.55 / Width Max 4.2
- Static Loaded Radius (inches): 5.7
- Flat Tire Radius (inches): 4.30
- Aspect ratio: 0.930
WHEEL
- Width Between Flanges: 3.50
- Specified Rim Diameter: 5
- Flange Height: 0.75
- Minimum Ledge Width: 0.80
| Dimensions | 00 × 00 in |
|---|
