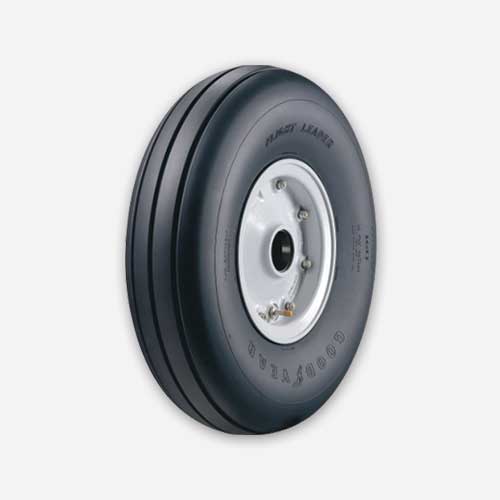

Please consult the following documents for more information about the 607C41-2 Goodyear Aircraft Rib Type III Tire:
CONSTRUCTION
- Ply Rating: 4
- TT or TL: TT
- Rated Speed (MPH): 120
SERVICE RATING
- Rated Load (LBS): 1,750
- Rated Inflation (PSI): 45
- Maximum Braking Load (LBS): 2,540
- Maximum Bottoming Load (LBS): 4,725
INFLATED DIMENSIONS
- Outside diameter: Max 17.3 / Min 16.8
- Section width: Max 5.9 / Min 5.6
- Shoulder: Diameter Max 15.25 / Width Max 5
- Static Loaded Radius (inches): 6.95
- Flat Tire Radius (inches): 4.90
- Aspect ratio: 0.916
WHEEL
- Width Between Flanges:3.79
- Specified Rim Diameter: 6.5
- Flange Height: 0.72
- Minimum Ledge Width: 0.75
