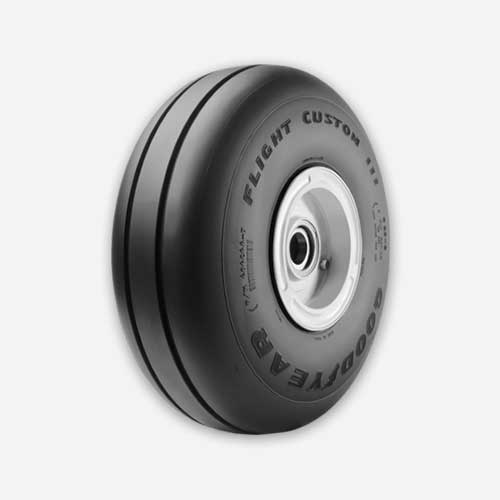

Please consult the following documents for more information about the 650C06-3 Goodyear Type III Flight Custom III Aircraft Tire:
CONSTRUCTION
- Ply Rating: 10
- TT or TL: TT
- Rated Speed (MPH): 160
SERVICE RATING
- Rated Load (LBS): 4,750
- Rated Inflation (PSI): 100
- Maximum Braking Load (LBS): 6,890
- Maximum Bottoming Load (LBS): 12,800
INFLATED DIMENSIONS
- Outside diameter: Max 22.1 / Min 21.35
- Section width: Max 6.65 / Min 6.25
- Shoulder: Diameter Max 19.9 / Width Max 5.65
- Static Loaded Radius (inches): 9.1
- Flat Tire Radius (inches): 7.10
- Aspect ratio: 0.908
WHEEL
- Width Between Flanges: 4.75
- Specified Rim Diameter: 10
- Flange Height: 0.81
- Minimum Ledge Width: 1.10
