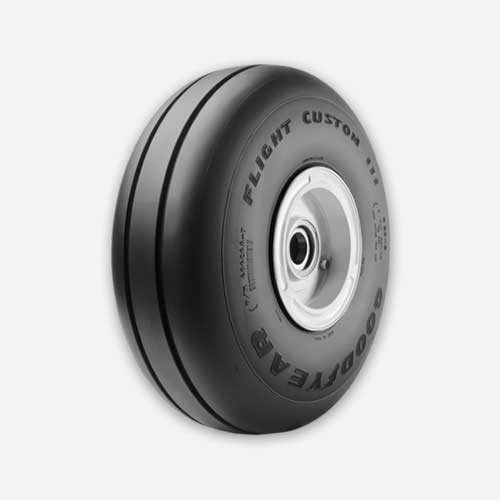

658C66-2 Goodyear Type III Flight Custom III Aircraft Tire | 6.50-8, 6 Ply, TT | 658C662
$425.00
- Ply Rating: 6
- TT or TL: TT
- Rated Speed (MPH): 160
Please consult the following documents for more information about the 658C66-2 Goodyear Type III Flight Custom III Aircraft Tire:
CONSTRUCTION
- Ply Rating: 6
- TT or TL: TT
- Rated Speed (MPH): 160
SERVICE RATING
- Rated Load (LBS): 2,300
- Rated Inflation (PSI): 51
- Maximum Braking Load (LBS): 3,340
- Maximum Bottoming Load (LBS): 6,200
INFLATED DIMENSIONS
- Outside diameter: Max 19.85 / Min 19.15
- Section width: Max 6.9 / Min 6.35
- Shoulder: Diameter Max 17.7 / Width Max 5.85
- Static Loaded Radius (inches): 8
- Flat Tire Radius (inches): 5.90
- Aspect ratio: 0.867
WHEEL
- Width Between Flanges: 5.25
- Specified Rim Diameter: 8
- Flange Height: 0.81
- Minimum Ledge Width: 0.95
| Dimensions | 00 × 00 in |
|---|
