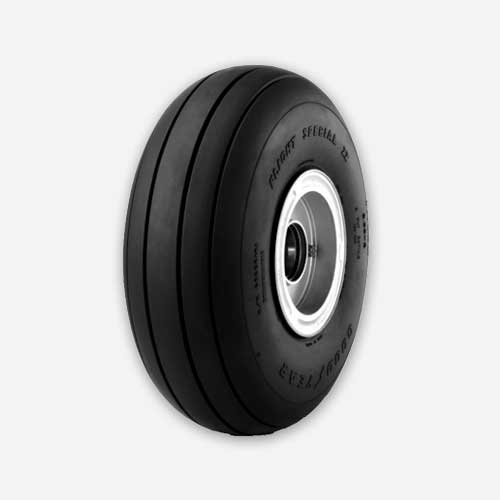

658C81-3 Goodyear Flight Special II Type III Aircraft Tire | 6.50-8, 8 Ply, TT | 658C813
$319.00
- Tube Type
- Tough General Aviation tire
- Wide rib tread design and large footprint (Enhanced traction)
- Tough-wearing tread rubber with triple-tempered nylon casing cord (promotes uniform wear and extended service life)
Please consult the following documents for more information about the 658C81-3 Goodyear Flight Special II Type III Aircraft Tire:
CONSTRUCTION
- Ply Rating: 8
- TT or TL: TT (Tube Type)
- Rated Speed (MPH): 120
SERVICE RATING
- Rated Load (LBS): 3,150
- Rated Inflation (PSI): 75
- Maximum Braking Load (LBS): 4,570
- Maximum Bottoming Load (LBS): 8,500
INFLATED DIMENSIONS
- Outside diameter: Max 19.85 / Min 19.15
- Section width: Max 6.9 / Min 6.35
- Shoulder: Diameter Max 17.7 / Width Max 5.85
- Static Loaded Radius (inches): 8
- Flat Tire Radius (inches): 5.90
- Aspect ratio: 0.867
WHEEL
- Width Between Flanges: 5.25
- Specified Rim Diameter: 8
- Flange Height: 0.81
- Minimum Ledge Width: 0.95
| Dimensions | 00 × 00 in |
|---|
