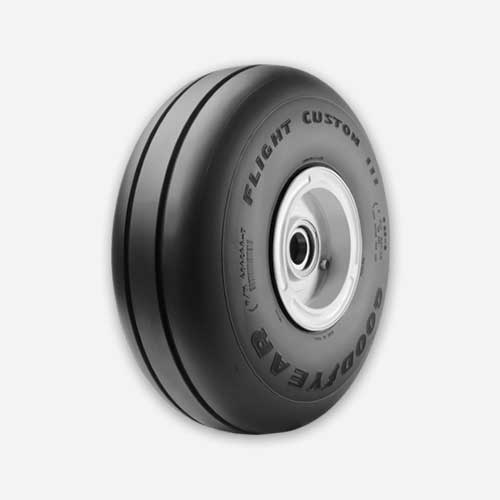

706C66-3 Goodyear Type III Flight Custom III Aircraft Tire | 7.00-6, 6 Ply, TT | 706C663
$394.00
- Ply Rating: 6
- TT or TL: TT
- Rated Speed (MPH): 160
Please consult the following documents for more information about the 706C66-3 Goodyear Type III Flight Custom III Aircraft Tire:
CONSTRUCTION
- Ply Rating: 6
- TT or TL: TT
- Rated Speed (MPH): 160
SERVICE RATING
- Rated Load (LBS): 1,900
- Rated Inflation (PSI): 38
- Maximum Braking Load (LBS): 2,760
- Maximum Bottoming Load (LBS): 5,100
INFLATED DIMENSIONS
- Outside diameter: Max 18.75 / Min 18
- Section width: Max 7 / Min 6.45
- Shoulder: Diameter Max 16.45 / Width Max 5.95
- Static Loaded Radius (inches): 7.3
- Flat Tire Radius (inches): 4.80
- Aspect ratio: 0.920
WHEEL
- Width Between Flanges: 5.00
- Specified Rim Diameter: 6
- Flange Height: 0.75
- Minimum Ledge Width: 0.70
| Dimensions | 00 × 00 in |
|---|
