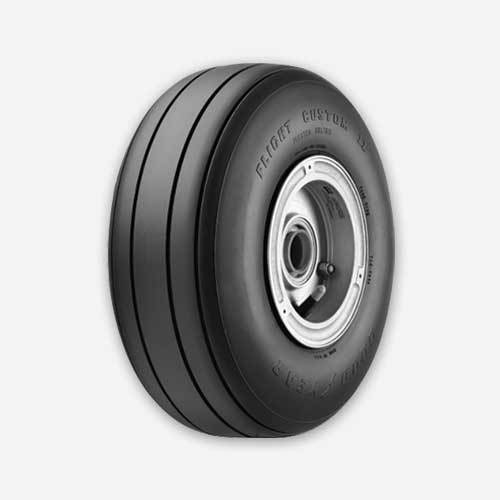

706T01-1 Goodyear Flight Custom II Type III Aircraft Tire | 7.00-6, 10 Ply, TL | 706T011

Please consult the following documents for more information about the 706T01-1 Goodyear Flight Custom III Type III Aircraft Tire:

• Approved Model List (PDF): Goodyear Aircraft Tire Care & Maintenance Guide
• Installation Instructions (PDF): Goodyear General Aviation/Business Aircraft Application Chart

CONSTRUCTION

• Ply Rating: 10
• TT or TL: TL (Tubeless)
• Rated Speed (MPH): 160

SERVICE RATING

• Rated Load (LBS): 3,600
• Rated Inflation (PSI): 73
• Maximum Braking Load (LBS): 5,225
• Maximum Bottoming Load (LBS): 9,700

INFLATED DIMENSIONS

• Outside diameter: Max 18.75 / Min 18
• Section width: Max 7 / Min 6.45
• Shoulder: Diameter Max 16.45 / Width Max 5.95

• Static Loaded Radius (inches): 7.3
• Flat Tire Radius (inches): 4.80
• Aspect ratio: 0.920

WHEEL

• Width Between Flanges: 5.00
• Specified Rim Diameter: 6
• Flange Height: 0.75
• Minimum Ledge Width: 0.90
