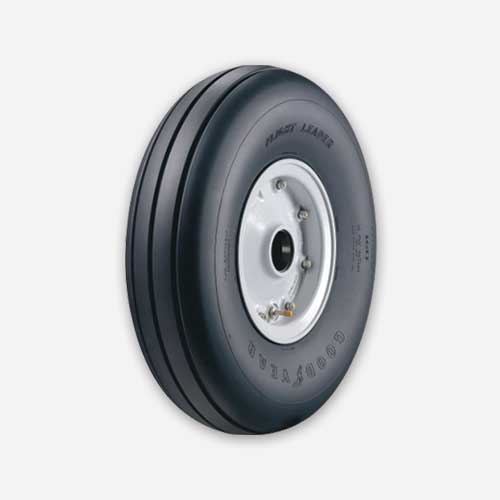

708C01-1 Goodyear Type III Aircraft Rib All Weather Tire | 7.00-8, 10 Ply, TL | 708C011
$750.00
- Unique cord body shape (Helps reduce stress as the tire cycles from tension to compression)
- Specially compounded tread design and large contact area (Versatility for many runway types)
- Tough casing design (Performs in a wide range of operating conditions)
Please consult the following documents for more information about the 708C01-1 Goodyear Type III Aircraft Rib All Weather Tire:
CONSTRUCTION
- Ply Rating: 10
- TT or TL: TL (Tubeless)
- Rated Speed (MPH): 120
SERVICE RATING
- Rated Load (LBS): 4,500
- Rated Inflation (PSI): 84
- Maximum Braking Load (LBS): 6,750
- Maximum Bottoming Load (LBS): 12,150
INFLATED DIMENSIONS
- Outside diameter: Max 20.85 / Min 20.1
- Section width: Max 7.3 / Min 6.84
- Shoulder: Diameter Max 18.54 / Width Max 6.19
- Static Loaded Radius (inches): 8.35
- Flat Tire Radius (inches): 5.90
- Aspect ratio: 0.882
WHEEL
- Width Between Flanges: 5.50
- Specified Rim Diameter: 8
- Flange Height: 0.81
- Minimum Ledge Width: 1.30
| Dimensions | 00 × 00 in |
|---|
