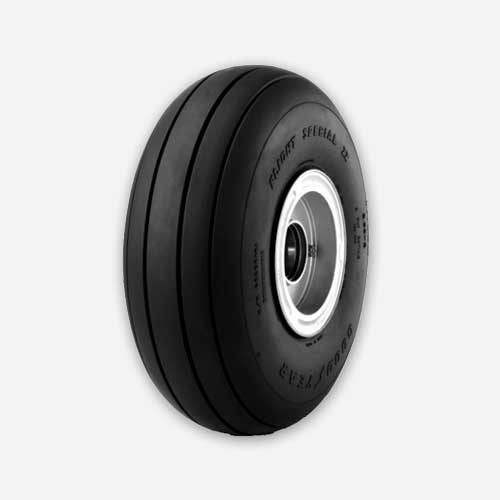

806C81B1 Goodyear Flight Special II Type III Aircraft Tire | 8.00-6, 8 Ply, TT
$345.00
- Tube Type
- Tough General Aviation tire
- Wide rib tread design and large footprint (Enhanced traction)
- Tough-wearing tread rubber with triple-tempered nylon casing cord (promotes uniform wear and extended service life)
Please consult the following documents for more information about the 806C81B1 Goodyear Flight Special II Type III Aircraft Tire:
CONSTRUCTION
- Ply Rating: 8
- TT or TL: TT (Tube Type)
- Rated Speed (MPH): 120
SERVICE RATING
- Rated Load (LBS): 2,800
- Rated Inflation (PSI): 48
- Maximum Braking Load (LBS): 4,060
- Maximum Bottoming Load (LBS): 7,600
INFLATED DIMENSIONS
- Outside diameter: Max 19.5 / Min 18.75
- Section width: Max 7.95 / Min 7.35
- Shoulder: Diameter Max 17.04 / Width Max 6.75
- Static Loaded Radius (inches): 7.55
- Flat Tire Radius (inches): 4.80
- Aspect ratio: 0.857
WHEEL
- Width Between Flanges: 5.00
- Specified Rim Diameter: 6
- Flange Height: 0.75
- Minimum Ledge Width: 0.85
| Dimensions | 00 × 00 in |
|---|
