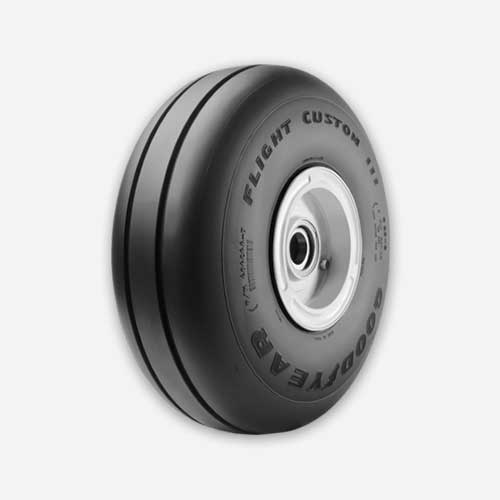

850C86-2 Goodyear Type III Flight Custom III Aircraft Tire | 8.50-10, 8 Ply, TT | 850C862

Please consult the following documents for more information about the 850C86-2 Goodyear Type III Flight Custom III Aircraft Tire:

• Goodyear Flight Custom III Application Guide (PDF)
• Approved Model List (PDF): Goodyear Aircraft Tire Care & Maintenance Guide
• Installation Instructions (PDF): Goodyear General Aviation/Business Aircraft Application Chart

CONSTRUCTION

• Ply Rating: 8
• TT or TL: TT
• Rated Speed (MPH): 160

SERVICE RATING

• Rated Load (LBS): 4,400
• Rated Inflation (PSI): 55
• Maximum Braking Load (LBS): 6,380
• Maximum Bottoming Load (LBS): 11,900

INFLATED DIMENSIONS

• Outside diameter: Max 25.65 / Min 24.7
• Section width: Max 8.7 / Min 8.2
• Shoulder: Diameter Max 22.79 / Width Max 7.4

• Static Loaded Radius (inches): 10.19
• Flat Tire Radius (inches): 6.90
• Aspect ratio: 0.898

WHEEL

• Width Between Flanges: 6.25
• Specified Rim Diameter: 10
• Flange Height: 0.81
• Minimum Ledge Width: 1.35
