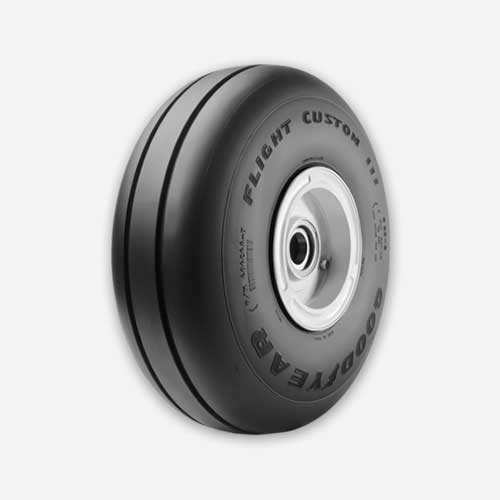

850T06-3 Goodyear Type III Flight Custom III Aircraft Tire | 8.50-10, 10 Ply, TL | 850T063
$659.00
- Ply Rating: 10
- TT or TL: TL
- Rated Speed (MPH): 160
Please consult the following documents for more information about the 850T06-3 Goodyear Type III Flight Custom III Aircraft Tire:
CONSTRUCTION
- Ply Rating: 10
- TT or TL: TL
- Rated Speed (MPH): 160
SERVICE RATING
- Rated Load (LBS): 5,500
- Rated Inflation (PSI): 70
- Maximum Braking Load (LBS): 7,980
- Maximum Bottoming Load (LBS): 14,800
INFLATED DIMENSIONS
- Outside diameter: Max 25.65 / Min 24.7
- Section width: Max 8.7 / Min 8.2
- Shoulder: Diameter Max 22.79 / Width Max 7.4
- Static Loaded Radius (inches): 10.19
- Flat Tire Radius (inches): 6.90
- Aspect ratio: 0.898
WHEEL
- Width Between Flanges: 6.25
- Specified Rim Diameter: 10
- Flange Height: 0.81
- Minimum Ledge Width: 1.35
| Dimensions | 00 × 00 in |
|---|
