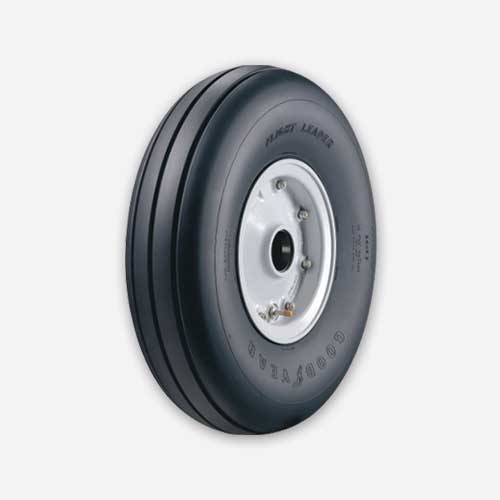

856T61-1 Goodyear Aircraft Rib Type III Tire | 8.50-6, 6 Ply, TL | 856T611

Please consult the following documents for more information about the 856T61-1 Goodyear Aircraft Rib Type III Tire:

• Approved Model List (PDF): Goodyear Aircraft Tire Care & Maintenance Guide
• Installation Instructions (PDF): Goodyear General Aviation/Business Aircraft Application Chart

CONSTRUCTION

• Ply Rating: 6
• TT or TL: TL
• Rated Speed (MPH): 120

SERVICE RATING

• Rated Load (LBS): 2,275
• Rated Inflation (PSI): 30
• Maximum Braking Load (LBS): 3,300
• Maximum Bottoming Load (LBS): 6,100

INFLATED DIMENSIONS

• Outside diameter: Max 22.1 / Min 21.15
• Section width: Max 8.85 / Min 8.3
• Shoulder: Diameter Max 19.2 / Width Max 7.5

• Static Loaded Radius (inches): 8.39
• Flat Tire Radius (inches): 5.00
• Aspect ratio: 0.911

WHEEL

• Width Between Flanges: 6.00
• Specified Rim Diameter: 6
• Flange Height: 0.88
• Min Ledge Width: 0.90
