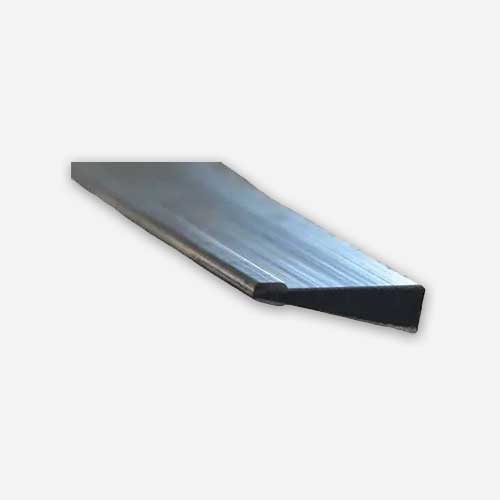

MC1741-79.5 Cessna Aircraft Trailing Edge Flap Stiffener | McFarlane Aviation MC1741795

Please use the documents below to confirm the MC1741-79.5 Cessna Aircraft Trailing Edge Flap Stiffener’s compatibility with your aircraft.

• Cessna MC1741 Series Flap Trailing Edge Stiffener Eligibility Chart (PDF)
• Cessna Flap Trailing Edge Stiffener Installation Instructions.pdf (PDF)
• Parts Manufacturer Approval PMA List 65 (PDF)
• Door and step parts section of McFarlane Aviation, Inc. catalog (PDF)

The new McFarlane stiffeners are accurately shaped to the same angle that the top and bottom skins come together to completely eliminate the bending stress due to riveting the skins together. This prevents stress concentrations in the skin corrugations and near the rivets, making cracks less likely. McFarlane has improved the stiffener angle as compared to other brands of triangle stiffeners.

The new McFarlane design smoothly transitions from the skin surface to a blunt trailing edge. It maintains the flap’s natural airfoil shape by eliminating the unsightly bulb and resultant drag found on common trailing edge stiffeners.

Product details:

• Fits many Cessna 150, 152, 172, 175, 180, 182, 185, 188, 205, 210 model aircraft
• New streamline shape reduces stress cracks and improves appearance
• Does not deform the skins
• Replaces: 0426901-14, 0426901-17, 0523901-10, 0523901-10AGW, 0523901-29, 0523901-37, 0523902-7, 1741-79.5
• FAA-PMA Approved
• Manufactured by McFarlane Aviation, Inc.
