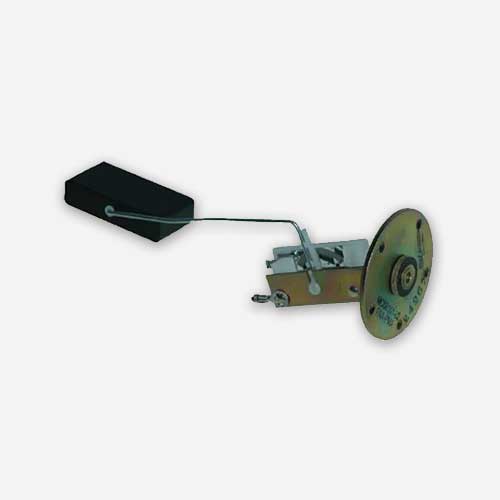

MC68101-02 TRANSMITTER, Fuel Quantity, Piper
$462.87
Product Details
Also available in fuel quantity transmitter kits FQTP-KT-1 or FQTP-KT-2.
Fuel Quantity Transmitters
More accurate and lasts longer!
McFarlane FAA PMA fuel quantity transmitters are direct replacements for originally installed Stewart Warner type fuel quantity transmitters. Eliminates the need for expensive transmitter conversion kits that require replacement of fuel gauges and wiring. McFarlane transmitters are engineered to be compatible with the original fuel quantity gauge and wiring which uses time proven technology and reliability.
Each McFarlane transmitter is manufactured using the new Stewart Warner “thick film ceramic” resistor technology. The benefits are longer life and increased accuracy. All components are thoroughly tested to ensure reliable operation
Eligible Aircraft
| Make | Series | Model | Beginning S/N | Ending S/N | Eligibility Chart |
| Piper | PA-28 | PA-28-140 | 28-20551 | 28-26956 | 1800 |
| Piper | PA-28 | PA-28-140 | 28-7125001 | 28-7125651 | 1800 |
| Piper | PA-28 | PA-28-140 | 28-7225001 | 28-7225612 | 1800 |
| Piper | PA-28 | PA-28-140 | 28-7325001 | 28-7325684 | 1800 |
| Piper | PA-28 | PA-28-140 | 28-7425001 | 28-7425454 | 1800 |
| Piper | PA-28 | PA-28-140 | 28-7525001 | 28-7525350 | 1800 |
| Piper | PA-28 | PA-28-140 | 28-7625001 | 28-7625234 | 1800 |
| Piper | PA-28 | PA-28-140 | 28-7725001 | 28-7725290 | 1800 |
| Piper | PA-28 | PA-28-150 | 28-1761 | 28-4377 | 1800 |
| Piper | PA-28 | PA-28-151 | 28-7415001 | 28-7415703 | 1800 |
| Piper | PA-28 | PA-28-151 | 28-7515001 | 28-7515449 | 1800 |
| Piper | PA-28 | PA-28-151 | 28-7615002 | 28-7615435 | 1800 |
| Piper | PA-28 | PA-28-151 | 28-7715001 | 28-7715314 | 1800 |
| Piper | PA-28 | PA-28-160 | 28-1761 | 28-4377 | 1800 |
| Piper | PA-28 | PA-28-161 | 28-7716002 | 28-7716323 | 1800 |
| Piper | PA-28 | PA-28-161 | 28-7816001 | 28-7816680 | 1800 |
| Piper | PA-28 | PA-28-161 | 28-7916001 | 28-7916598 | 1800 |
| Piper | PA-28 | PA-28-161 | 28-8016001 | 28-8016373 | 1800 |
| Piper | PA-28 | PA-28-161 | 28-8116001 | 28-8116268 | 1800 |
| Piper | PA-28 | PA-28-161 | 28-8216007 | 28-8216007 | 1800 |
| Piper | PA-28 | PA-28-161 | 28-8216014 | 28-8216014 | 1800 |
| Piper | PA-28 | PA-28-161 | 28-8216017 | 28-8216017 | 1800 |
| Piper | PA-28 | PA-28-161 | 28-8216019 | 28-8216019 | 1800 |
| Piper | PA-28 | PA-28-161 | 28-8216021 | 28-8216021 | 1800 |
| Piper | PA-28 | PA-28-180 | 28-1761 | 28-5869 | 1800 |
| Piper | PA-28 | PA-28-180 | 28-7105001 | 28-7105244 | 1800 |
| Piper | PA-28 | PA-28-180 | 28-7205001 | 28-7205328 | 1800 |
| Piper | PA-28 | PA-28-180 | 28-7305001 | 28-7305611 | 1800 |
| Piper | PA-28 | PA-28-180 | 28-7405001 | 28-7405290 | 1800 |
| Piper | PA-28 | PA-28-180 | 28-7505001 | 28-7505261 | 1800 |
| Piper | PA-28 | PA-28-181 | 28-7690001 | 28-7690467 | 1800 |
| Piper | PA-28 | PA-28-181 | 28-7790001 | 28-7790607 | 1800 |
| Piper | PA-28 | PA-28-181 | 28-7890001 | 28-7890551 | 1800 |
| Piper | PA-28 | PA-28-181 | 28-7990001 | 28-7990589 | 1800 |
| Piper | PA-28 | PA-28-181 | 28-8090001 | 28-8090372 | 1800 |
| Piper | PA-28 | PA-28-181 | 28-8190001 | 28-8190279 | 1800 |
| Piper | PA-28 | PA-28-181 | 28-8290017 | 28-8290017 | 1800 |
| Piper | PA-28 | PA-28-181 | 28-8290018 | 28-8290018 | 1800 |
| Piper | PA-28 | PA-28-181 | 28-8290028 | 28-8290028 | 1800 |
| Piper | PA-28 | PA-28-181 | 28-8290033 | 28-8290034 | 1800 |
| Piper | PA-28 | PA-28-181 | 28-8290036 | 28-8290036 | 1800 |
| Piper | PA-28 | PA-28-235 | 28-10003 | 28-11393 | 1800 |
| Piper | PA-28 | PA-28-235 | 28-7110001 | 28-7110042 | 1800 |
| Piper | PA-28 | PA-28-235 | 28-7210001 | 28-7210038 | 1800 |
| Piper | PA-28 | PA-28-235 | 28-7310001 | 28-7310187 | 1800 |
| Piper | PA-28 | PA-28-235 | 28-7410001 | 28-7410120 | 1800 |
| Piper | PA-28 | PA-28-235 | 28-7510001 | 28-7510145 | 1800 |
| Piper | PA-28 | PA-28-235 | 28-7610001 | 28-7610206 | 1800 |
| Piper | PA-28 | PA-28-235 | 28-7710001 | 28-7710089 | 1800 |
| Piper | PA-28 | PA-28R-180 | 28R-30005 | 28R-30481 | 1800 |
| Piper | PA-28 | PA-28R-180 | 28R-30483 | 28R-31279 | 1800 |
| Piper | PA-28 | PA-28R-180 | 28R-7130001 | 28R-7130019 | 1800 |
| Piper | PA-28 | PA-28R-200 | 28R-30482 | 28R-30482 | 1800 |
| Piper | PA-28 | PA-28R-200 | 28R-35001 | 28R-35830 | 1800 |
| Piper | PA-28 | PA-28R-200 | 28R-7135001 | 28R-7135238 | 1800 |
| Piper | PA-28 | PA-28R-200 | 28R-7200055 | 28R-7200055 | 1800 |
| Piper | PA-28 | PA-28R-200 | 28R-7235001 | 28R-7235330 | 1800 |
| Piper | PA-28 | PA-28R-200 | 28R-7335001 | 28R-7335455 | 1800 |
| Piper | PA-28 | PA-28R-200 | 28R-7435001 | 28R-7435331 | 1800 |
| Piper | PA-28 | PA-28R-200 | 28R-7535001 | 28R-7535303 | 1800 |
| Piper | PA-28 | PA-28R-200 | 28R-7635001 | 28R-7635545 | 1800 |
| Piper | PA-32 | PA-32-260 | 32-1 | 32-1320 | 1800 |
| Piper | PA-32 | PA-32-260 | 32-7100001 | 32-7100038 | 1800 |
| Piper | PA-32 | PA-32-260 | 32-7200001 | 32-7299999 | 1800 |
| Piper | PA-32 | PA-32-260 | 32-7300001 | 32-7300076 | 1800 |
| Piper | PA-32 | PA-32-260 | 32-7400001 | 32-7400061 | 1800 |
| Piper | PA-32 | PA-32-260 | 32-7500001 | 32-7500053 | 1800 |
| Piper | PA-32 | PA-32-260 | 32-7600001 | 32-7600033 | 1800 |
| Piper | PA-32 | PA-32-260 | 32-7700001 | 32-7700023 | 1800 |
| Piper | PA-32 | PA-32-260 | 32-7800001 | 32-7800008 | 1800 |
| Piper | PA-32 | PA-32-300 | 32-40000 | 32-41018 | 1800 |
| Piper | PA-32 | PA-32-300 | 32-7140001 | 32-7140086 | 1800 |
| Piper | PA-32 | PA-32-300 | 32-7240001 | 32-7240147 | 1800 |
| Piper | PA-32 | PA-32-300 | 32-7340001 | 32-7340201 | 1800 |
| Piper | PA-32 | PA-32-300 | 32-7440001 | 32-7440182 | 1800 |
| Piper | PA-32 | PA-32-300 | 32-7540001 | 32-7540198 | 1800 |
| Piper | PA-32 | PA-32-300 | 32-7640001 | 32-7640142 | 1800 |
| Piper | PA-32 | PA-32-300 | 32-7740001 | 32-7740113 | 1800 |
| Piper | PA-32 | PA-32-300 | 32-7840001 | 32-7840222 | 1800 |
