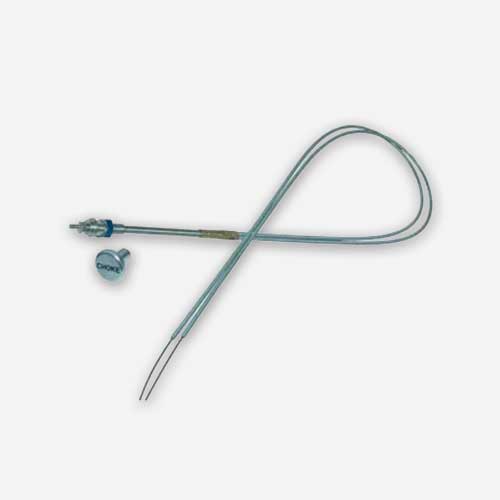

MCC101D144-RCC Non-Locking Choke Control (12 ft) 912/914 Rotax Engines (Clear Engraved Knob) | McFarlane Aviation MCC101D144RCC
$262.06
- For use with Dual Carburetor Rotax 912/914 Series Engines
- Round, clear anodized aluminum (silver) knob, engraved with “Choke”
- Weight: 1.61 lbs
- 4 piece kit
- Does not feature a locking mechanism, but has an internal elastomer seal to dampen vibration and provide resistance.
Please use the push-pull controls pages the McFarlane Aviation catalog below to confirm the MCC101D144-RCC choke control’s compatibility with your aircraft.
The MCC101D144-RCC kit includes the following:
| Part Number | Description | Quantity | Unit of Measure |
|---|---|---|---|
| 6277CC | Choke Knob, Round, Clear | 1 | Each |
| 6515 | Barrel Stop Assembly | 2 | Each |
| MCC101D144 | Control, Dual, 12 ft, w/o Knob | 1 | Each |
Product Details:
- All metal construction
- High temperature Teflon lined conduit for smooth, consistent control
- Available in 4, 6, 8, 12 foot and custom lengths
- Measured from panel fitting to end of conduit, wires extend at least 3 inches beyond conduit
- Easily trimmed to length
- Adjustable cable stops to limit travel
- Many knob styles available or provide your own knob with 10-32 thread
- Manufactured to the same quality standards as McFarlane’s FAA-PMA parts
- Anodized aluminum knobs
- Slip fit conduit terminal fittings also available: part numbers 6424 or 6271
- Includes two adjustable barrel stops to attach to the carb choke arm (no swaging or soldering necessary)
- For use with Rotax 912/914 Series Engines
- Travel (stroke): 3.5″ minimum
- Conduit: 0.188 inch OD Teflon lined
- Max Work Loads: Pull: ~25 lbs (Not designed for push loads)
- Operating Temp: -65 to 450 deg F
- Inner Wire: 1/16″ 7×7 Stainless Steel
- Panel Hole: 7/16-20 UNF thread
- Manufactured by McFarlane Aviation, Inc.
| Weight | 0.00 lbs |
|---|---|
| Dimensions | 00 × 00 in |
