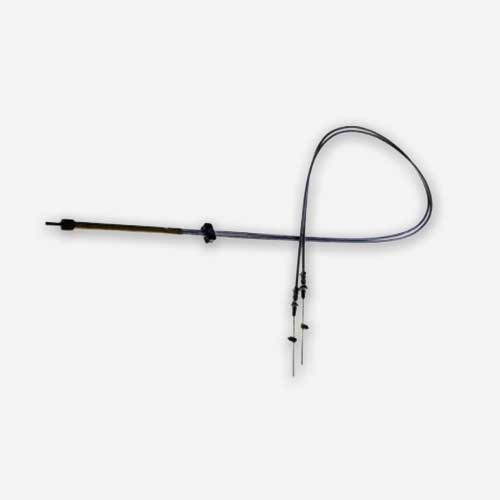

MCQ100D048 Quadrant Style Throttle Control (4 ft.) for Dual Carburetor 912/914 Series Rotax Aircraft Engine | McFarlane Aviation

Please use the push-pull controls pages the McFarlane Aviation catalog below to confirm the MCQ100D048 quadrant style throttle control’s compatibility with your aircraft.

• Push-pull controls, accessories, and eligibility chart section of McFarlane Aviation, Inc. catalog (PDF)

Product Specifications:

• Includes throttle hardware kit P/N 6408 with lightweight throttle return springs P/N 7140 to prevent throttle creep.
• Dimensions: L: 20 x W: 20 x H: 3 in
• Weight: 0.84 lbs
• Slip Fit Conduit Terminals: 2 each with M6x1-6g x 1.00 inch thread
• Conduit: 0.188 inch OD Teflon lined wound conduit
• Inner Wire: Heavy duty 0.062 inch diameter, 1×7 stainless steel twisted wire per MIL-DTL-87161
• Travel (stroke): 4 inch maximum
• Design Work Loads: Pull: 25 lbs maximum (not designed for push loads)
• Operating Temperature: -65 to 450 deg F
• Pushrod Thread (quadrant end): 10-32 UNF x 0.65″

Product Details:

• Quality stainless steel construction
• High temperature Teflon lined conduit for smooth, consistent control
• Available in 4, 6, 8, 12 foot and custom lengths (May be trimmed to length)
• Convenient dual conduit clamp for simple mounting
• Versatile threaded conduit terminals for easy adjustment (M6x1-6g x 1 inch thread)
• Adjustable cable stops to limit travel
• Viton boot to dampen vibration and seal out dust on the quadrant end
• Manufactured to the same quality standards as McFarlane’s FAA-PMA controls
• Manufactured by McFarlane Aviation, Inc.
