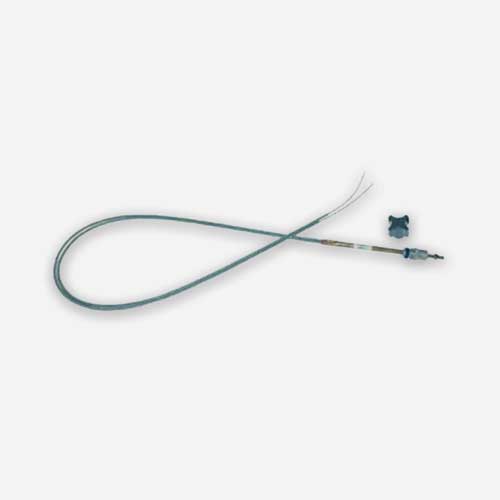

MCTL1014D048-P Turn-to-Lock Choke Control (4 ft) 912/914 Rotax Engines (4-Prong Knob) | McFarlane Aviation MCTL1014D048P

Please use the push-pull controls pages the McFarlane Aviation catalog below to confirm the MCTL1014D048-P control’s compatibility with your aircraft.

• Push-pull controls, accessories, and eligibility chart section of McFarlane Aviation, Inc. catalog (PDF)

MCTL1014D048-P includes:

Product Details:

• All metal construction
• High temperature Teflon lined conduit for smooth, consistent control
• Available in 4, 6, 8, 12 foot and custom lengths
• Measured from panel fitting to end of conduit, wires extend at least 3 inches beyond conduit
• Easily trimmed to length
• Adjustable cable stops to limit travel
• Many knob styles available or provide your own knob with 10-32 thread
• Manufactured to the same quality standards as McFarlane’s FAA-PMA parts
• Slip fit conduit terminal fittings also available: part numbers 6424 or 6271
• Includes one 0.05 allen wrench and two adjustable barrel stops to attach to the carb choke arm (no swaging or soldering necessary)

• For use with Rotax 912/914 Series Engines
• Travel (stroke): 3.5″ minimum
• Conduit: 0.188 inch OD Teflon lined wound conduit
• Max Work Loads: Pull: ~25 lbs (Not designed for push loads)
• Minimum Locking Force: ~30 lbs
• Operating Temp: -65 to 450 deg F (knob/housing assembly: -65 to 250 deg F)
• Panel Fitting: 1/2-20 UNF thread
• Manufactured by McFarlane Aviation, Inc.
