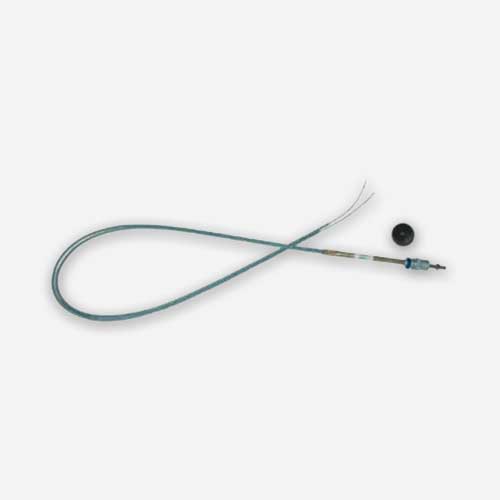

MCTL1014D072-B Turn-to-Lock Choke Control (6 ft) 912/914 Rotax Engines (w/Ball Knob) | McFarlane Aviation MCTL1014D072B
$235.09
- For use with Dual Carburetor Rotax 912/914 Series Engines
- Weight: 1.015 lbs
- Requires a quarter turn of the knob to lock or unlock the control at any position.
Please use the push-pull controls pages the McFarlane Aviation catalog below to confirm the MCTL1014D072-B control’s compatibility with your aircraft.
MCTL1014D072-B includes:
| Part Number | Description | Quantity | Unit of Measure |
|---|---|---|---|
| 6409 | 0.05 Allen Wrench | 1 | Each |
| 6515 | Barrel Stop Assembly | 2 | Each |
| EC53 | Ball knob, Black | 1 | Each |
| MCTL1014D072 | Control, Turn-to-Lock, Dual, 6 ft, w/o Knob | 1 | Each |
Product Details:
- All metal construction
- High temperature Teflon lined conduit for smooth, consistent control
- Available in 4, 6, 8, 12 foot and custom lengths
- Measured from panel fitting to end of conduit, wires extend at least 3 inches beyond conduit
- Easily trimmed to length
- Adjustable cable stops to limit travel
- Many knob styles available or provide your own knob with 10-32 thread
- Manufactured to the same quality standards as McFarlane’s FAA-PMA parts
- Slip fit conduit terminal fittings also available: part numbers 6424 or 6271
- Includes one 0.05 allen wrench and two adjustable barrel stops to attach to the carb choke arm (no swaging or soldering necessary)
- For use with Rotax 912/914 Series Engines
- Travel (stroke): 3.5″ minimum
- Conduit: 0.188 inch OD Teflon lined wound conduit
- Max Work Loads: Pull: ~25 lbs (Not designed for push loads)
- Minimum Locking Force: ~30 lbs
- Operating Temp: -65 to 450 deg F (knob/housing assembly: -65 to 250 deg F)
- Panel Fitting: 1/2-20 UNF thread
- Manufactured by McFarlane Aviation, Inc.
| Weight | 0.00 lbs |
|---|---|
| Dimensions | 00 × 00 in |
