TL-KT-1 Nose Gear Torque Link Repair Kit for Cessna Aircraft | McFarlane Aviation TLKT1

$226.94

FAA-PMA approved kit includes all commonly replaced torque link parts
Fits many Cessna 150, 152, 172, 175, 182, 205, 206, 210 model aircraft
Replaces: TCTL, TCTL-KT, TL-KT-1
Manufactured by McFarlane Aviation, Inc.

Categories: Cessna Torque Link Repair, Landing Gear Components, Torque Link Repair

Please use the following documents to confirm the TL-KT-1 Cessna Nose Gear Torque Link Kit’s compatibility with your Cessna aircraft.

Nose Gear Torque Link Repair Kit Eligibility/Application Chart (PDF)

Torque link section of McFarlane Aviation Catalog, Inc. catalog (PDF)

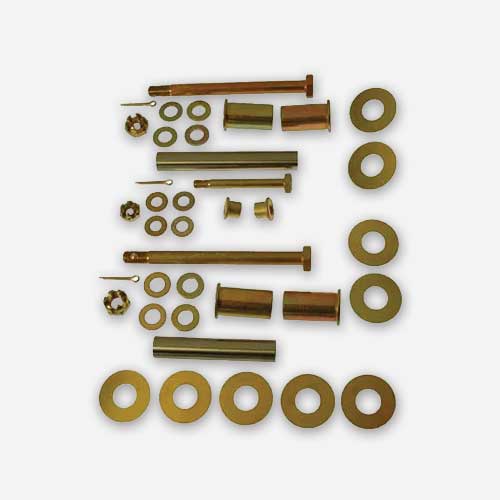

TL-KT-1 kit includes:

Part Number

Description

Quantity

Unit of Measure

AN310-3

NUT, Castellated, 10-32

AN310-4

AN4-31

MC0543047-1

SPACER, Torque Link

MCS1450-6B14-005

SHIM TORQUE LINK

MCS1450-6B14-007

SHIM TORQUE LINK

MCS1450-6B14-010

SHIM TORQUE LINK

MS24665-132

COTTER PIN, 1/16″ X 1/2″

NAS1149C0332R

WASHER, 3/16″, SS, .032

NAS1149C0432R

WASHER, 1/4″, SS, .032

NAS6203-22D

NAS77-3-023

BUSHING

NAS77-6-088

BUSHING

Eligible Aircraft

Make	Series	Model	Beginning S/N	Ending S/N	Quantity Per Aircraft	Location	Comment	Eligibility Chart
Cessna	150	150	17001	59018	1	nose strut torque link		6167
Cessna	150	150A	15059019	15059350	1	nose strut torque link		6167
Cessna	150	150B	15059351	15059700	1	nose strut torque link		6167
Cessna	150	150C	15059701	15060087	1	nose strut torque link		6167
Cessna	150	150D	15060088	15060772	1	nose strut torque link		6167
Cessna	150	150E	15060773	15061532	1	nose strut torque link		6167
Cessna	150	150F	15061533	15064532	1	nose strut torque link		6167
Cessna	150	150G	15064533	15067198	1	nose strut torque link		6167
Cessna	150	150H	15067199	15069308	1	nose strut torque link		6167
Cessna	150	150J	15069309	15071128	1	nose strut torque link		6167
Cessna	150	150K	15071129	15072003	1	nose strut torque link		6167
Cessna	150	150L	15072004	15075781	1	nose strut torque link		6167
Cessna	150	150M	15075782	15079405	1	nose strut torque link		6167
Cessna	150	A150K	A1500001	A1500226	1	nose strut torque link		6167
Cessna	150	A150L	A1500227	A1500523	1	nose strut torque link		6167
Cessna	150	A150M	A1500524	A1500734	1	nose strut torque link		6167
Cessna	150	F150F	F150-0001	F150-0067	1	nose strut torque link		6167
Cessna	150	F150G	F150-0068	F150-0219	1	nose strut torque link		6167
Cessna	150	F150H	F150-0220	F150-0389	1	nose strut torque link		6167
Cessna	150	F150J	F150-0390	F150-0529	1	nose strut torque link		6167
Cessna	150	F150K	F15000530	F15000658	1	nose strut torque link		6167
Cessna	150	F150L	F15000659	F15001143	1	nose strut torque link		6167
Cessna	150	F150M	F15001144	F15001428	1	nose strut torque link		6167
Cessna	150	FA150K	FA1500001	FA1500081	1	nose strut torque link		6167
Cessna	150	FA150L	FA1500082	FA1500120	1	nose strut torque link		6167
Cessna	150	FA150L (when equipped w/FKA150-2311 & FKA150-2316)	FA1500121	FA1500261	1	nose strut torque link		6167
Cessna	150	FA150M (when equipped w/FKA150-2311 & FKA150-2316)	FA1500262	FA1500336	1	nose strut torque link		6167
Cessna	150	FRA150L	FRA1500121	FRA1500261	1	nose strut torque link		6167
Cessna	150	FRA150M	FRA1500262	FRA1500336	1	nose strut torque link		6167
Cessna	152	152	15279406	15286033	1	nose strut torque link		6167
Cessna	152	A152	A1520735	A1521049	1	nose strut torque link		6167
Cessna	152	F152	F15201429	F15201980	1	nose strut torque link		6167
Cessna	152	FA152	FA1520337	FA1520425	1	nose strut torque link		6167
Cessna	172	172	36142	36149	1	nose strut torque link		6167
Cessna	172	172	36154	46754	1	nose strut torque link		6167
Cessna	172	172A	46755	47746	1	nose strut torque link		6167
Cessna	172	172B	17247747	17248734	1	nose strut torque link		6167
Cessna	172	172C	17248735	17249544	1	nose strut torque link		6167
Cessna	172	172D	17249545	17250572	1	nose strut torque link		6167
Cessna	172	172E	17250573	17251822	1	nose strut torque link		6167
Cessna	172	172F (T-41A)	17251823	17253392	1	nose strut torque link		6167
Cessna	172	172G	17253393	17254892	1	nose strut torque link		6167
Cessna	172	172H (T-41A)	17254893	17256512	1	nose strut torque link		6167
Cessna	172	172I	17256513	17257161	1	nose strut torque link		6167
Cessna	172	172K	17257162	17259223	1	nose strut torque link		6167
Cessna	172	172L	17259224	17260758	1	nose strut torque link		6167
Cessna	172	172M	17260759	17263458	1	nose strut torque link		6167
Cessna	172	172M	17263459	17267584	1	nose strut torque link		6167
Cessna	172	172N	17267585	17274009	1	nose strut torque link		6167
Cessna	172	172P	17274010	17276654	1	nose strut torque link		6167
Cessna	172	172Q	17275869	17276211	1	nose strut torque link		6167
Cessna	172	172R	17280001	17299999	1	nose strut torque link		6167
Cessna	172	172S	172S8001	172S99999	1	nose strut torque link		6167
Cessna	172	F172D	F172-0001	F172-0018	1	nose strut torque link		6167
Cessna	172	F172E	F172-0019	F172-0085	1	nose strut torque link		6167
Cessna	172	F172F	F172-0086	F172-0179	1	nose strut torque link		6167
Cessna	172	F172G	F172-0180	F172-0319	1	nose strut torque link		6167
Cessna	172	F172H	F17200655	F17200754	1	nose strut torque link		6167
Cessna	172	F172H	F172-0320	F172-0654	1	nose strut torque link		6167
Cessna	172	F172K	F17200755	F17200804	1	nose strut torque link		6167
Cessna	172	F172L	F17200805	F17200904	1	nose strut torque link		6167
Cessna	172	F172M	F17200905	F17201234	1	nose strut torque link		6167
Cessna	172	F172M	F17201235	F17201514	1	nose strut torque link		6167
Cessna	172	F172N	F17201515	F17202039	1	nose strut torque link		6167
Cessna	172	F172P	F17202040	F17202254	1	nose strut torque link		6167
Cessna	172	FP172	FP172-0001	FP172-0003	1	nose strut torque link		6167
Cessna	172	FR172E	FR17200001	FR17200060	1	nose strut torque link		6167
Cessna	172	FR172F	FR17200061	FR17200145	1	nose strut torque link		6167
Cessna	172	FR172G	FR17200146	FR17200225	1	nose strut torque link		6167
Cessna	172	FR172H	FR17200226	FR17200350	1	nose strut torque link		6167
Cessna	172	FR172J	FR17200351	FR17200590	1	nose strut torque link		6167
Cessna	172	FR172K	FR17200591	FR17200675	1	nose strut torque link		6167
Cessna	172	P172D	P17257120	P17257188	1	nose strut torque link		6167
Cessna	172	R172K	R1722000	R1723454	1	nose strut torque link		6167
Cessna	175	175	55001	56238	1	nose strut torque link		6167
Cessna	175	175A	56239	56777	1	nose strut torque link		6167
Cessna	175	175B	17556778	17557002	1	nose strut torque link		6167
Cessna	175	175C	17557003	17557119	1	nose strut torque link		6167
Cessna	182	182	33000	33842	1	nose strut torque link		6167
Cessna	182	182A	33843	51556	1	nose strut torque link		6167
Cessna	182	182B	51557	52358	1	nose strut torque link		6167
Cessna	182	182C	52359	53007	1	nose strut torque link		6167
Cessna	182	182D	18253008	18253598	1	nose strut torque link		6167
Cessna	182	182E	18253599	18254423	1	nose strut torque link		6167
Cessna	182	182F	18254424	18255058	1	nose strut torque link		6167
Cessna	182	182G	18255059	18255844	1	nose strut torque link		6167
Cessna	182	182H	18255846	18256684	1	nose strut torque link		6167
Cessna	182	182J	18256685	18257625	1	nose strut torque link		6167
Cessna	182	182K	18257626	18258505	1	nose strut torque link		6167
Cessna	182	182L	18258506	18259305	1	nose strut torque link		6167
Cessna	182	182M	18259306	18260055	1	nose strut torque link		6167
Cessna	182	182N	18260056	18260825	1	nose strut torque link		6167
Cessna	182	182P	18260826	18262465	1	nose strut torque link		6167
Cessna	182	182P	18262466	18265175	1	nose strut torque link		6167
Cessna	182	182Q	18265176	18267715	1	nose strut torque link		6167
Cessna	182	182S	18280001	18280944	1	nose strut torque link		6167
Cessna	182	182T	18280945	182999999	1	nose strut torque link		6167
Cessna	182	F182P	F18200001	F18200025	1	nose strut torque link		6167
Cessna	182	F182Q	F18200026	F18200169	1	nose strut torque link		6167
Cessna	182	T182T	T18208001	T182999999	1	nose strut torque link		6167
Cessna	205	210-5 (205)	205-0001	205-0480	1	nose strut torque link		6167
Cessna	205	210-5A (205A)	205-0481	205-0577	1	nose strut torque link		6167
Cessna	206	206	206-0001	206-0275	1	nose strut torque link	See Note 2	6167
Cessna	206	P206	P206-0002	P206-0160	1	nose strut torque link	See Note 2	6167
Cessna	206	P206A	P206-0161	P206-0306	1	nose strut torque link	See Note 2	6167
Cessna	206	P206B	P206-0307	P206-0419	1	nose strut torque link	See Note 5	6167
Cessna	206	P206C	P206-0420	P206-0519	1	nose strut torque link	See Note 5	6167
Cessna	206	P206D	P206-0520	P206-0603	1	nose strut torque link	See Note 5	6167
Cessna	206	P206E	P20600604	P20600641	1	nose strut torque link	See Note 5	6167
Cessna	206	TP206A	P206-0191	P206-0306	1	nose strut torque link	See Note 5	6167
Cessna	206	TP206B	P206-0307	P206-0419	1	nose strut torque link	See Note 5	6167
Cessna	206	TP206C	P206-0420	P206-0519	1	nose strut torque link	See Note 2	6167
Cessna	206	TP206D	P206-0520	P206-0603	1	nose strut torque link	See Note 5	6167
Cessna	206	TP206E	P20600604	P20600641	1	nose strut torque link	See Note 5	6167
Cessna	206	TU206A	U206-0487	U206-0656	1	nose strut torque link	See Note 2	6167
Cessna	206	TU206B	U206-0657	U206-0914	1	nose strut torque link	See Note 5	6167
Cessna	206	TU206C	U206-0915	U206-1234	1	nose strut torque link	See Note 5	6167
Cessna	206	TU206D	U206-1235	U206-1444	1	nose strut torque link	See Note 5	6167
Cessna	206	TU206E	U20601445	U20601537	1	nose strut torque link	See Note 5	6167
Cessna	206	TU206E	U20601538	U20601700	1	nose strut torque link		6167
Cessna	206	U206	U206-0276	U206-0437	1	nose strut torque link	See Note 2	6167
Cessna	206	U206A	U206-0438	U206-0656	1	nose strut torque link	See Note 2	6167
Cessna	206	U206B	U206-0657	U206-0914	1	nose strut torque link	See Note 5	6167
Cessna	206	U206C	U206-0915	U206-1234	1	nose strut torque link	See Note 5	6167
Cessna	206	U206D	U206-1235	U206-1444	1	nose strut torque link	See Note 5	6167
Cessna	206	U206E	U20601445	U20601537	1	nose strut torque link	See Note 5	6167
Cessna	206	U206E	U20601538	U20601700	1	nose strut torque link		6167
Cessna	210	210	57001	57575	1	nose strut torque link		6167
Cessna	210	210A	21057576	21057840	1	nose strut torque link		6167
Cessna	210	210B	21057841	21058085	1	nose strut torque link		6167
Cessna	210	210C	21058086	21058220	1	nose strut torque link		6167
Cessna	210	210D	21058221	21058510	1	nose strut torque link		6167
Cessna	210	210E	21058511	21058715	1	nose strut torque link		6167
Cessna	210	210F	21058716	21058818	1	nose strut torque link		6167
Cessna	210	210G	21058819	21058936	1	nose strut torque link		6167
Cessna	210	210H	21058937	21059061	1	nose strut torque link		6167
Cessna	210	210J	21059062	21059199	1	nose strut torque link		6167
Cessna	210	210K	21059200	21059502	1	nose strut torque link	See Note 2	6167
Cessna	210	210L	21059503	21060255	1	nose strut torque link	See Note 4	6167
Cessna	210	T210F	T210-0001	T210-0197	1	nose strut torque link		6167
Cessna	210	T210G	T210-0198	T210-0307	1	nose strut torque link		6167
Cessna	210	T210H	T210-0308	T210-0392	1	nose strut torque link		6167
Cessna	210	T210J	T210-0393	T210-0454	1	nose strut torque link		6167
Cessna	210	T210K	21059200	21059502	1	nose strut torque link		6167
Cessna	210	T210L	21059503	21060255	1	nose strut torque link	See Note 4	6167

Eligibility Chart Notes:

TL-KT-8 and TL-KT-9 torque link kits are used on Cessna model aircraft with heavy duty landing gear that utilizes AN6 size (3/8-24 UNF) bolts in the upper and lower torque link joints. The normal duty landing gear uses AN4 size (1/4-28 UNF) bolts in the upper and lower torque link joints.
Aircraft models in this serial range may use one of two choices for McFarlane Torque Link Kits. The aircraft that have both upper and lower spacers measuring ~ 2 inches long will use McFarlane Torque Link Kit TL-KT-1 (containing two MC0543047-1 spacers). The aircraft that has an upper spacer measuring ~ 2.6 inches and a lower spacer measuring ~2 inches will use McFarlane Torque Link Kit TL-KT-2 (containing one MC0543047-1 and one MC0543047-2 spacer).
Aircraft models in this serial range may use one of two choices for McFarlane Torque Link Kits. The aircraft that have both upper and lower spacers measuring ~ 2 inches long will use McFarlane Torque Link Kit TL-KT-5 (containing two MC0543047-1 spacers). The aircraft that has an upper spacer measuring ~ 2.6 inches and a lower spacer measuring ~2 inches will use McFarlane Torque Link Kit TL-KT-4 (containing one MC0543047-1 and one MC0543047-2 spacer).
Aircraft models in this serial range may use one of two choices for McFarlane Torque Link Kits. The aircraft that have both upper and lower spacers measuring ~ 2 inches long will use McFarlane Torque Link Kit TL-KT-1 (containing two MC0543047-1 spacers). The aircraft that has an upper spacer measuring ~ 2.6 inches and a lower spacer measuring ~2 inches will use McFarlane Torque Link Kit TL-KT-7 (containing one MC0543047-1 and one MC0543047-2 spacer).
Aircraft models in this serial range may use one of two choices for McFarlane Torque Link Kits. The aircraft that have both upper and lower spacers measuring ~ 2 inches long will use McFarlane Torque Link Kit TL-KT-1 (containing two MC0543047-1 spacers). The aircraft that has an upper spacer measuring ~ 2.6 inches and a lower spacer measuring ~2 inches will use McFarlane Torque Link Kit TL-KT-11 (containing one MC0543047-1 and one MC0543047-2 spacer).

Weight	0.00 lbs
Dimensions	00 × 00 in

If you need to pick up parts our store and warehouse is conveniently located at Allegheny County Airport (KAGC) in Western Pennsylvania. Fly or drive in for your parts if you are in the area!

Aircraft Supply and Repair Inc.
21 Allegheny County Airport
West Mifflin, Pennsylvania 15122

Orders: 800.569.9397
Customer Service & Technical Support: 412.469.1747
Fax: 412.469.8271
info@aircraftsupply.com

Call us if you need assistance, Parts Support is our expertise and we are happy to help. Please feel free to contact us at 1.800.569.9397, 412.469.1747 or by email, info@aircraftsupply.com We look forward to supporting your aircraft needs!

TL-KT-1 Nose Gear Torque Link Repair Kit for Cessna Aircraft | McFarlane Aviation TLKT1

Eligible Aircraft

Eligibility Chart Notes:

Related products

Login

Register
