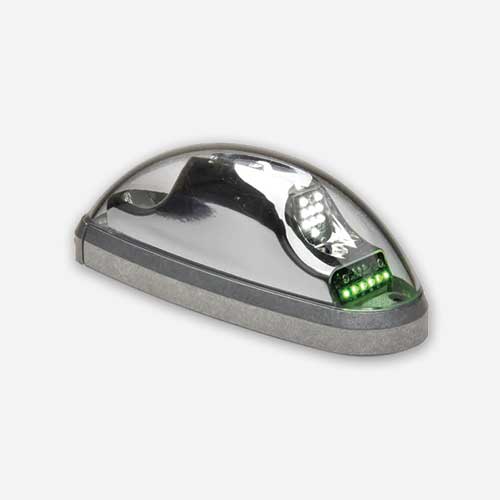

01-0771733-01 Green/White Forward Navigation/Tail Position/Anti-Collision Aircraft Wing Tip Light (14 Volts) | Whelen Aerospace Technologies ORION 600 Series | McFarlane Aviation 01077173301

The ORION™ 600 series incorporate a red or green Forward Navigation Light, the white flashing Anti-Collision Light, and the Tail Position Light functions. The built-in tail position light meets all FAA requirements, so a tail mounted position light is not needed. State of the art LED circuitry is built-in to eliminate the need for separate flasher boxes for operation. The footprint and mounting are identical to legacy Whelen products for ease of installation and retrofit.

• Weight: 0.5 pounds
• Dimensions: L 5.65” (144mm) x W 2.04” (52mm) x H 1.78” (45mm)
• Current Draw:
14V:
• Position 0.48 amps
• Anti-Collision: 1.0 amps avg.
28V:
• Position 0.17 amps
• Anti-Collision: 0.5 amps avg.
• Position LED Colors: Aviation Red, Aviation Green, Aviation White
• Anti-Collision LED Color: Aviation White
• Lenses: Clear, hard-coated polycarbonate
• Field replaceable
