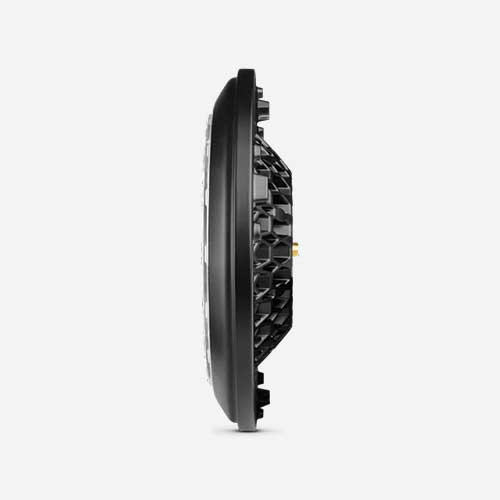

01-2240-4540-H AeroLEDs Sunspot 56-4000 14V WW (Wig-Wag) LED Landing Light | McFarlane 0122404540H

Please use the following document to confirm the 01-2240-4540 AeroLEDs Sunspot 56-4000 14V WW LED Landing Light’s compatibility with your aircraft.

• AeroLEDs Sunspot 56-4000 Series LED Landing Light Data Sheet (PDF)

Product details:

• Power Consumption: 175 watts max
• Color Temperature: Aviation white for exceptional rendering
• Lifespan: 30,000+ hours MTBF
• Lens: UV-hard coated polycarbonate
• Construction: Aluminum with black powder-coated heat sink
• Mounting: Standard PAR56 compatibility
• Thermal Protection: Built-in for durability
• Max Current: 10.2A@14VDC, 6.3A@28VDC
• Weight: 1.8 lbs
• Length: 6.9″ Width: 6.9″ Depth: 1.9″

-H Model Features:

• Built-in pulse (wig-wag) mode for enhanced recognition, aiding in collision avoidance and reducing bird strikes
• Self-contained pulse controller reduces electrical load by 50% in multi-light installations
• Optional synchronization for advanced operational capabilities

Designed for efficiency, the SunSpot 56 series consumes less power, delivers more lumens, and is vibration resistant. Installation is seamless with the standard PAR56 mounts and existing electrical connections.

Produces superior illumination with enhanced ground visibility and air recognition from up to 30 miles away. The wider beam and aviation white color temperature provides exceptional color rendering, ensuring vivid, true-to-life illumination.
