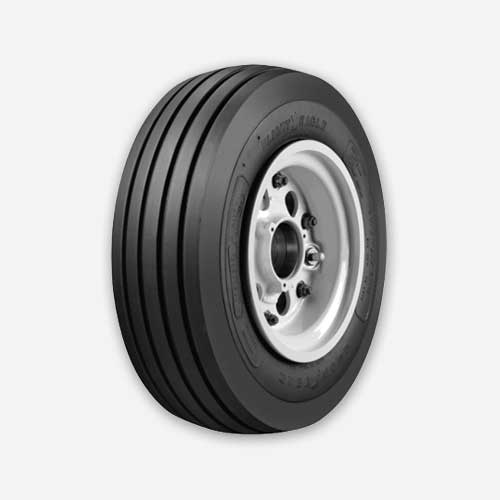

Please consult the following documents for more information about the 164F28-1 Goodyear Flight Eagle Type VII Business Jet Aircraft Tire:
CONSTRUCTION
- Ply Rating: 12
- TT or TL: TL
- Rated Speed (MPH): 190
SERVICE RATING
- Rated Load (LBS): 3,475
- Rated Inflation (PSI): 185
- Maximum Braking Load (LBS): 5,213
- Maximum Bottoming Load (LBS): 10,425
INFLATED DIMENSIONS
- Outside diameter: Max 16 / Min 15.5
- Section width: Max 4.45 / Min 4.15
- Shoulder: Diameter Max 14.55 / Width Max 3.9
- Static Loaded Radius (inches): 6.9
- Flat Tire Radius (inches): 5.90
- Aspect ratio: 0.901
WHEEL
- Width Between Flanges:3.50
- Specified Rim Diameter: 8
- Flange Height: 0.81
- Minimum Ledge Width: 1.20
