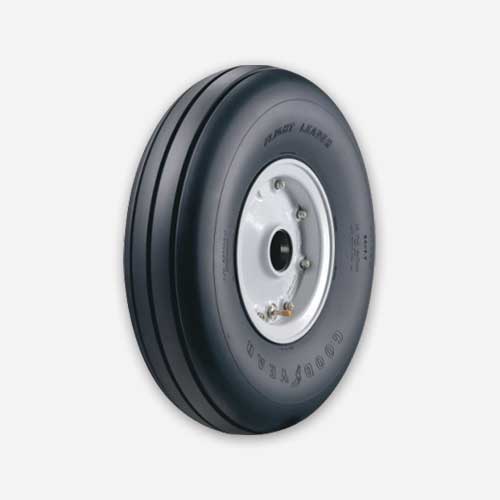

184F08-1 Goodyear Business Aircraft Rib DDT Type VII Tire | 18×4.4, 10 Ply, TL | Citation 184F081
$1,179.00
- Unique design for tough applications
- Ply Rating: 10
- TT or TL: TL
- Rated speed (MPH): 190
Please consult the following documents for more information about the 184F08-1 Goodyear Business Aircraft Rib DDT Type VII Tire:
CONSTRUCTION
- Ply Rating: 10
- TT or TL: TL
- Rated Speed (MPH): 190
SERVICE RATING
- Rated Load (LBS): 3,550
- Rated Inflation (PSI): 185
- Maximum Braking Load (LBS): 5,320
- Maximum Bottoming Load (LBS): 10,600
INFLATED DIMENSIONS
- Outside diameter: Max 17.9 / Min 17.4
- Section width: Max 4.45 / Min 4.15
- Shoulder: Diameter Max 16.5 / Width Max 3.9
- Static Loaded Radius (inches): 7.9
- Flat Tire Radius (inches): 7.10
- Aspect ratio: 0.889
WHEEL
- Wheel (Rim) Size: 18×4.4
- Width Between Flanges: 3.50
- Specified Rim Diameter: 10
- Flange Height: 0.81
- Minimum Ledge Width: 1.25
| Dimensions | 00 × 00 in |
|---|
