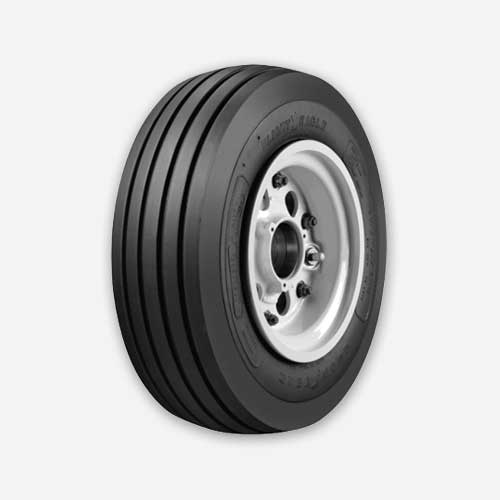

217K22-1 Goodyear Flight Eagle DT Business Jet Three-Part Aircraft Tire | 21×7.25-10, 12 Ply, TL | 217K221
$1,025.00
- Ply Rating: 12
- TT or TL: TL
- Rated Speed (MPH): 225
Please consult the following documents for more information about the 217K22-1 Goodyear Flight Eagle DT Business Jet Three-Part Aircraft Tire:
CONSTRUCTION
- Ply Rating: 12
- TT or TL: TL
- Rated Speed (MPH): 225
SERVICE RATING
- Rated Load (LBS): 6,400
- Rated Inflation (PSI): 166
- Maximum Braking Load (LBS): 9,600
- Maximum Bottoming Load (LBS): 19,200
INFLATED DIMENSIONS
- Outside diameter: Max 21.25 / Min 20.6
- Section width: Max 7.2 / Min 6.8
- Shoulder: Diameter Max 19.25 / Width Max 6.35
- Static Loaded Radius (inches): 9
- Flat Tire Radius (inches): 7.30
- Aspect ratio: 0.779
WHEEL
- Width Between Flanges: 5.50
- Specified Rim Diameter: 10
- Flange Height: 1.00
- Minimum Ledge Width: 1.80
| Dimensions | 00 × 00 in |
|---|
