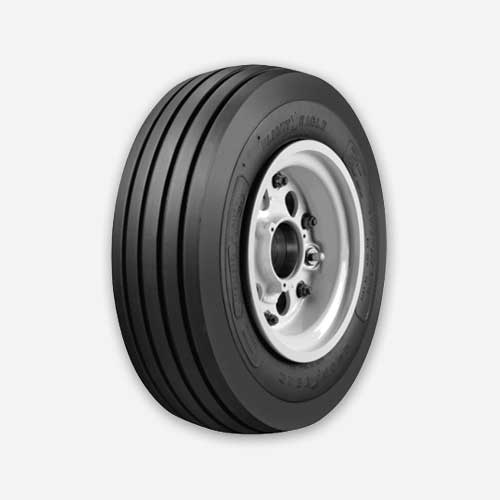

226K08-4 Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire | 22×5.75-12, 10 Ply, TL | 226K084
$1,255.00
- Ply Rating: 10
- TT or TL: TL
- Rated Speed (MPH): 190
Please consult the following documents for more information about the 226K08-4 Goodyear Flight Eagle Business Jet Three-Part Aircraft Tire:
CONSTRUCTION
- Ply Rating: 10
- TT or TL: TL
- Rated Speed (MPH): 190
SERVICE RATING
- Rated Load (LBS): 5,700
- Rated Inflation (PSI): 180
- Maximum Braking Load (LBS): 8,550
- Maximum Bottoming Load (LBS): 17,100
INFLATED DIMENSIONS
- Outside diameter: Max 22 / Min 21.4
- Section width: Max 5.75 / Min 5.4
- Shoulder: Diameter Max 20.2 / Width Max 5.05
- Static Loaded Radius (inches): 9.6
- Flat Tire Radius (inches): 8.00
- Aspect ratio: 0.870
WHEEL
- Width Between Flanges: 4.25
- Specified Rim Diameter: 12
- Flange Height: 0.88
- Minimum Ledge Width: 1.35
| Dimensions | 00 × 00 in |
|---|
