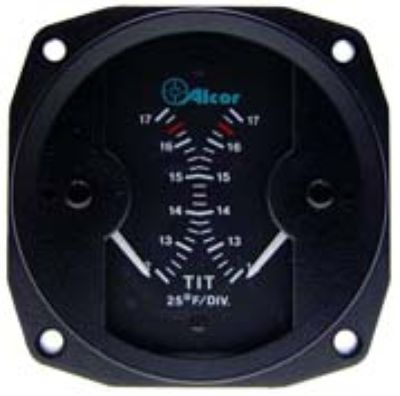

46000-4 Alcor TIT/TIT Type K Dual Meter w/Light 3 1/8″

Please confirm the 46000-4 meter’s compatibility with your aircraft using these documents:

• Instruments, probes, and leads section of McFarlane Aviation catalog (PDF)
• Alcor EGT probe installation instructions (PDF)
• Alcor EGT CHT gauge installation instructions (PDF)

Product Details:

• TIT/TIT dual gauge for twin engine aircraft
• Internally lit with a 24V incandescent light
• Indicates true temperature from 1200-1700 deg F in 25 deg increments
• Compatible Thermocouple Type: K – Red and Yellow
• Size: 3 1/8″
• Calibration: Scale 1650F @ 6.2 Ohms (192″)
• Replaces: 205-9AL/24, 205-9BL/24, 45891, 45957, 80-107-704-00
• Approved by: EASA-STC (European Union), FAA-PMA, FAA-STC (Modification Article)
• Manufactured by Alcor, Inc.

• The best value in the industry backed by a generous 3-year warranty
• Designed for twin engine aircraft, providing a quick visual reference to TIT
• Calibrated to true temperature and intended for use with 16′ leads (Can be calibrated for other lead lengths)
• Designed to provide temperature compensation for accurate readings year round, on the ground and at altitude
• All necessary mounting hardware included
• Alcor instruments are designed, manufactured, and supported in the U.S.A.

* Factory calibrated for leads of the indicated length but may be recalibrated for different lead lengths either at the factory or with an Alcal 2000 or Alcal 2000+ system.
