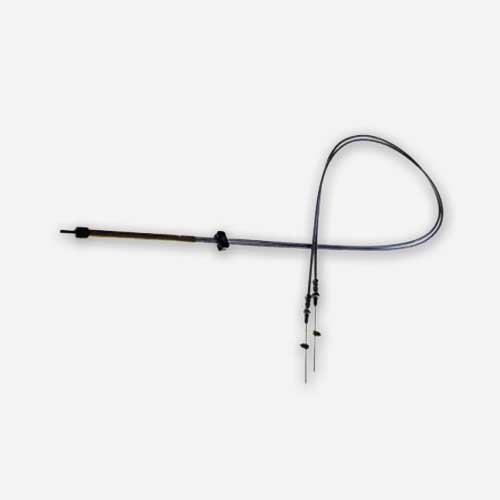

Please use the push-pull controls pages the McFarlane Aviation catalog below to confirm the MCQ100D144 quadrant style throttle control’s compatibility with your aircraft.
Product Specifications:
- Includes throttle hardware kit P/N 6408 with lightweight throttle return springs P/N 7140 to prevent throttle creep.
- Slip Fit Conduit Terminals: 2 each with M6x1-6g x 1.00 inch thread
- Conduit: 0.188 inch OD Teflon lined wound conduit
- Inner Wire: Heavy duty 0.062 inch diameter, 1×7 stainless steel twisted wire per MIL-DTL-87161
- Travel (stroke): 4 inch maximum
- Design Work Loads: Pull: 25 lbs maximum (not designed for push loads)
- Operating Temperature: -65 to 450 deg F
- Pushrod Thread (quadrant end): 10-32 UNF x 0.65″
Product Details:
- Quality stainless steel construction
- High temperature Teflon lined conduit for smooth, consistent control
- Available in 4, 6, 8, 12 foot and custom lengths (May be trimmed to length)
- Convenient dual conduit clamp for simple mounting
- Versatile threaded conduit terminals for easy adjustment (M6x1-6g x 1 inch thread)
- Adjustable cable stops to limit travel
- Viton boot to dampen vibration and seal out dust on the quadrant end
- Manufactured to the same quality standards as McFarlane’s FAA-PMA controls
- Manufactured by McFarlane Aviation, Inc.
