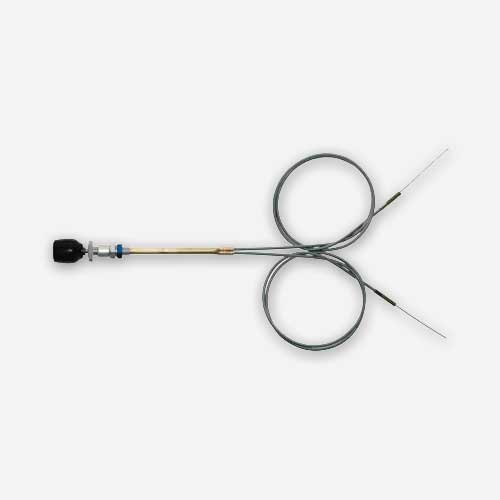

MCT100D144 Rotax Throttle Control, Dual, 12 ft, McFarlane

Please use the push-pull controls pages the McFarlane Aviation catalog below to confirm the MCT100D144 throttle control’s compatibility with your aircraft.

• Push-pull controls, accessories, and eligibility chart section of McFarlane Aviation, Inc. catalog (PDF)

Product Specifications:

• Includes throttle hardware kit P/N 6408 with lightweight throttle return springs P/N 7140 to prevent throttle creep.
• Panel Fitting: 1/2-20 UNF x 0.67 inch thread
• Slip Fit Conduit Terminals: 2 each with M6x1-6g x 1.00 inch thread
• Conduit: 0.188 inch OD Teflon lined wound conduit
• Inner Wire: Heavy duty 0.062 inch diameter, 1×7 stainless steel twisted wire per MIL-DTL-87161
• Travel (stroke): 3.75 inch maximum
• Design Work Loads:
• Push: Not applicable (designed for pull loads only)
• Pull: 10 lbs maximum
• Typical Locking Force: 1 to 10 lbs (locking force dependent on friction lock engagement)
• Operating Temperature: -65 to 450 deg F

Product Details:

• Super-smooth friction lock
• Quality all metal construction
• High temperature Teflon lined for smooth, consistent control
• Available in 4, 6, 8, 12 foot and custom lengths
• Measured from panel fitting to end of conduit, wires extend 6 inches beyond conduit
• Easily trimmed to length
• Versatile threaded conduit terminals for easy adjustment (M6x1-6g x 1 inch thread)
• Adjustable cable stops to limit travel
• Two knob styles available: Ball (-B) or standard barrel shape
• Manufactured to the same quality standards as McFarlane’s FAA-PMA parts
• Manufactured by McFarlane Aviation, Inc.
