RG-125 Concorde Emergency Aircraft Battery, Platinum Series | RG125

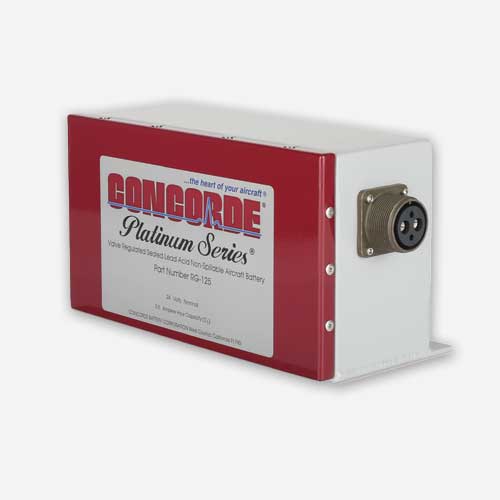

Concorde Emergency Aircraft Battery, Platinum Series

The RG-125 is a Concorde Platinum Series Aircraft Battery. The Platinum Series is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-125 Battery Specifications:

Primary Aircraft Purpose	Emergency Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	3.50
Max Weight	11.90 lb / 5.4 kg
Concorde Battery Part Number Ipr Ipp Ipr Ipp Ipr Ipp 23°C (74°F) -18°C (0°F) -30°C (-22°F) A A A A A A RG-125 Not Rated for Engine Starting

Description of the RG-125 Aircraft Battery:

Avionics Battery for lighting, standby, emergency power. Protects and extends the life of other avionics. Concorde Emergency Batteries float directly on the DC buss with no need for a dedicated charger. This results in a high inrush current which extends battery life with fast recovery time from discharge. With the battery floating directly on the buss, transient spikes in the DC power are absorbed. These batteries are self regulating on charge and will take only the current required to maintain it at full charge.

Recombinant Gas – The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

• Maintenance free
• Constructed with non removable vent valves – no addition of electrolyte or water required
• Aerobatic: Non spillable at any altitude or attitude
• Factory tested to assure airworthiness
• Shipped fully charged and ready to install
• Manufactured with absorbed glass mat separators (AGM)
• RG® Series batteries ship non-HAZMAT
• Shipping Weight: 14 lbs
